Why TPO Waterproof Membrane Is the Smart Choice for Sustainable, Long‑Lasting Roofing and Underground Protection?

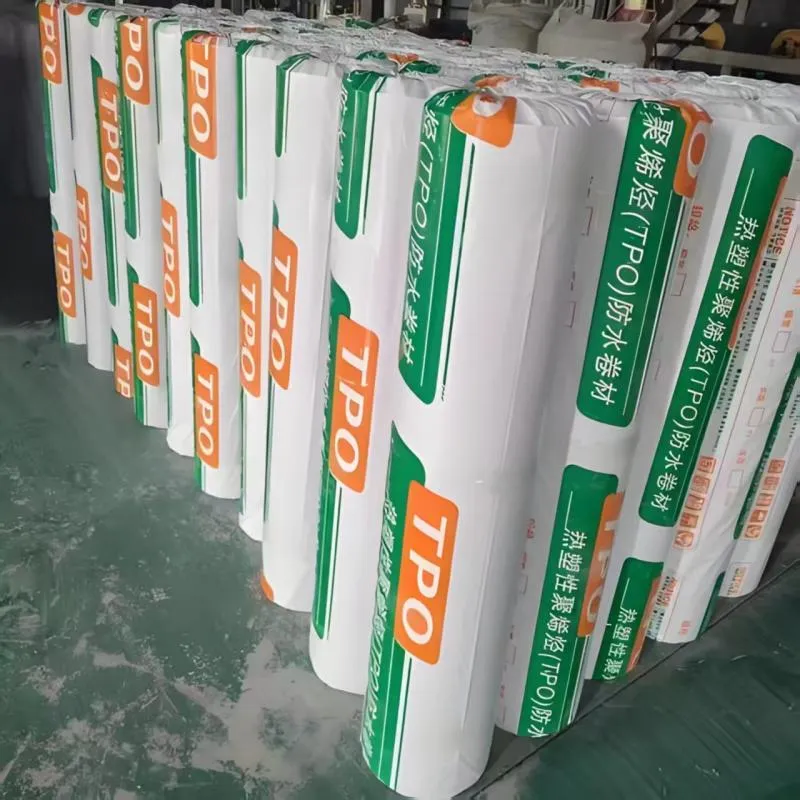

Haiming Machinery's TPO Waterproof Membrane (Thermoplastic Polyolefin) combines the flexibility of rubber with the weldability of plastic, offering a high‑performance solution for exposed roofing, green roofs, and underground waterproofing. Manufactured using German‑engineered extrusion lines and high‑purity polyolefin resins, this membrane is available in three variants—Homogeneous (H‑Type), Fabric Reinforced (L‑Type), and Backing (P‑Type)— to suit diverse project requirements. With UV resistance exceeding 10,000 hours, a service temperature range from -40°C to +120°C, and full recyclability, it supports LEED certification and delivers 30+ years of service life. Backed by Haiming Machinery's 15+ years of manufacturing expertise and global project experience, this membrane is a trusted choice for commercial, industrial, and infrastructure projects worldwide.

Engineered for Performance: The TPO Advantage

TPO (Thermoplastic Polyolefin) is produced through a co‑polymerisation of ethylene, propylene, and minor olefin monomers, combined with anti‑aging agents and plasticisers. Haiming Machinery's advanced extrusion and calendering technology transforms this formulation into a dense, non‑porous membrane that outperforms traditional PVC and EPDM in key areas. Unlike PVC, TPO contains no plasticisers, eliminating the risk of embrittlement over time. Compared to EPDM, TPO offers heat‑weldable seams that are as strong as the parent material, ensuring watertight integrity. Whether installed on a large commercial roof, a green rooftop garden, or a below‑grade foundation, Haiming TPO delivers reliable waterproofing with minimal maintenance.

Three Structural Variants for Every Project

Haiming Machinery offers three distinct TPO membrane types, allowing specifiers to match the product to the specific demands of the application:

Material Structure and Composition

The layered design of Haiming TPO membranes ensures optimal performance in every environment:

• UV‑Resistant Top Layer – High‑stabilised TPO resin with advanced anti‑aging additives; passes 10,000 hours of accelerated UV aging; white/light colour reflects solar heat, reducing cooling loads.

• Middle Reinforced Layer (L‑Type only) – Polyester fibre or fibreglass scrim; dramatically improves tensile strength (≥120 N/cm per DIN 16726) and dimensional stability, preventing shrinkage or deformation.

• Backing Layer (P‑Type only) – Non‑woven polyester fabric or pressure‑sensitive adhesive; creates a full‑adhesion mechanical bond with concrete, eliminating lateral water migration.

• Bottom Contact Surface – Designed for clean, consistent heat welding or adhesive application.

Five Core Advantages That Set Haiming TPO Apart

1. Superior Environmental Performance – No chlorides or plasticisers; zero harmful emissions; 100% recyclable; supports LEED v4.1 MR Credit.

2. Extreme Weather Resistance – Service temperature from -40°C to +120°C; excellent UV and ozone resistance; proven in desert, tropical, and sub‑arctic climates.

3. Reliable Waterproofing – Dense, non‑porous matrix; hot‑air welded seams are as strong as the parent material; no seam failure and no lateral water migration.

4. Excellent Mechanical Properties – Tensile strength (L‑Type) ≥120 N/cm; elongation at break (H‑Type) ≥600%; accommodates settlement, expansion, contraction, and vibration.

5. Fast & Flexible Installation – Compatible with heat welding, mechanical fastening, full adhesion, and pre‑applied reverse adhesion; welding speeds reach 8‑12 m/min; lightweight for reduced transport and labour costs.

Technical Specifications

Application Scenarios

Haiming TPO membranes are suitable for a wide range of environments:

• Large Public Buildings – Shopping malls, hospitals, schools, exhibition centres – ideal for LEED‑certified green buildings.

• Transportation Hubs – Airports, high‑speed railway stations, bus depots – resists puncture and vibration fatigue.

• Industrial Facilities – Manufacturing plants, cold storage, chemical workshops – superior chemical resistance compared to PVC/EPDM.

• Green Roofs & Rooftop Gardens – Passes EN 13948 root resistance test; protects concrete from root penetration.

• Existing Roof Renovation – Can be installed over old built‑up roofs, modified bitumen, or single‑ply membranes – no tear‑off required.

• Underground Waterproofing – Basements, tunnels, parking structures – P‑Type bonds permanently to poured concrete, eliminating channeling.

Installation Methods (Step‑by‑Step)

Hot Air Welding (Recommended) – Automatic welder or hand‑held gun; heat overlap to melting point, press with roller; seam strength equals parent material; speed 8‑12 m/min.

Mechanical Fastening – For large roof areas; membrane loosely laid, fasteners installed through overlaps, then seams welded; ideal for high wind uplift zones and metal decks.

Full Adhesion – Low‑VOC adhesive applied to substrate; membrane rolled into wet adhesive; seams welded; best for sloped or curved surfaces.

Pre‑Applied Reverse Adhesion – For underground concrete; P‑Type placed adhesive‑side up; rebar placed and concrete poured directly – concrete bonds permanently upon curing.

Why Choose Haiming Machinery?

Haiming Machinery (founded in 2007) is headquartered in Taitou Industrial Park, Shouguang, Shandong, with a strong focus on waterproofing membrane production lines and equipment. The company's TPO membrane is manufactured on fully automated extrusion‑calender lines with in‑line quality monitoring. Every roll is individually tested before shipping. Haiming provides free weld test kits, installation guides, and on‑site training for large projects. The membrane has been installed across North America, Southeast Asia, the Middle East, and Europe, with project references including airport hangars, cold storage warehouses, pharmaceutical clean rooms, and LEED Platinum office towers. Warranty options range from 10 to 30 years, and system warranties are available using recommended accessories.

Frequently Asked Questions

Q: How long does TPO waterproof membrane last?

A: With proper installation, Haiming TPO provides 30+ years of service life. Accelerated aging confirms UV resistance beyond 10,000 hours.

Q: Is TPO better than PVC or EPDM?

A: Better than PVC – no plasticisers means no embrittlement. Better than EPDM – heat‑weldable seams and superior chemical resistance.

Q: Can TPO be installed over existing roofing?

A: Yes. It is designed for reroofing/overlay applications. A separation layer or cover board may be required depending on the existing surface.

Q: Is TPO resistant to ponding water?

A: Yes. The membrane is non‑absorbent and UV‑resistant, suitable for flat roofs with occasional ponding water, provided adequate drainage.

Q: Does TPO become brittle in cold weather?

A: No. It passes the -40°C low temperature bend test without cracks and has been successfully installed in Canadian and Russian winters.

Q: What colours are available?

A: Standard is white (high reflectivity). Light grey, tan, or custom colours are available upon minimum order quantity.

Conclusion

To sum up, Haiming Machinery's TPO Waterproof Membrane delivers a winning combination of durability, sustainability, and installation efficiency for roofing, green roofs, and underground projects. With three structural variants, industry‑leading certifications, and a proven track record across global climates, it offers specifiers and contractors a reliable, future‑proof solution. For technical data sheets, sample rolls, or project‑specific quotes, please contact our sales team today—we are ready to support your next waterproofing project with expertise and responsiveness.
