The Ultimate Guide to PVC Waterproof Membrane Production Lines

For over two decades, Haiming Machinery has been at the forefront of engineering and manufacturing high-performance extrusion lines. Specializing in solutions for the construction materials industry, we provide turnkey production systems that deliver unparalleled efficiency, reliability, and output quality. Our expertise is embodied in our advanced PVC Waterproof Membrane Production Line, a system designed to meet the rigorous demands of modern waterproofing product manufacturing.

A PVC waterproof membrane production line is a sophisticated, integrated system that transforms raw PVC compounds into durable, flexible sheets used for roofing, tunneling, landscaping, and containment applications. The process involves precise compounding, high-temperature extrusion, meticulous calendering, pattern embossing, and controlled cooling to produce membranes with consistent thickness, excellent tensile strength, and long-term weather resistance. Investing in a robust production line is critical for manufacturers aiming to produce top-tier products that comply with international standards like ASTM, DIN, and GB.

Core Components of the Haiming Machinery Production Line

Our production line is a symphony of precision-engineered components working in perfect harmony. Each unit is designed for optimal performance and seamless integration.

• Automatic Feeding & Mixing System: Ensures precise recipe formulation and homogeneous blending of PVC resin, plasticizers, stabilizers, and fillers.
• Twin-Screw Extruder: The heart of the line. Our co-rotating, parallel twin-screw extruder provides superior plastication, mixing, and stable melt pressure for consistent output.
• Flat Die & Adjustable Deckle: A precision-manufactured die that distributes the molten PVC uniformly across the full width, allowing for quick size changes.
• Multi-Roll Calender Unit: A critical station comprising multiple precision-ground rolls that gauge the sheet to exact thickness with superior surface finish.
• Embossing & Cooling Unit: Imprints a surface pattern (e.g., linen, diamond) for slip resistance and aesthetics, followed by a multi-zone cooling system to set the dimensions.
• Edge Trimming & Guiding System: Automatically trims the selvage and maintains web alignment throughout the process.
• Haul-Off & Tension Control: Provides constant, adjustable tension to draw the sheet through the line without stretching or deformation.

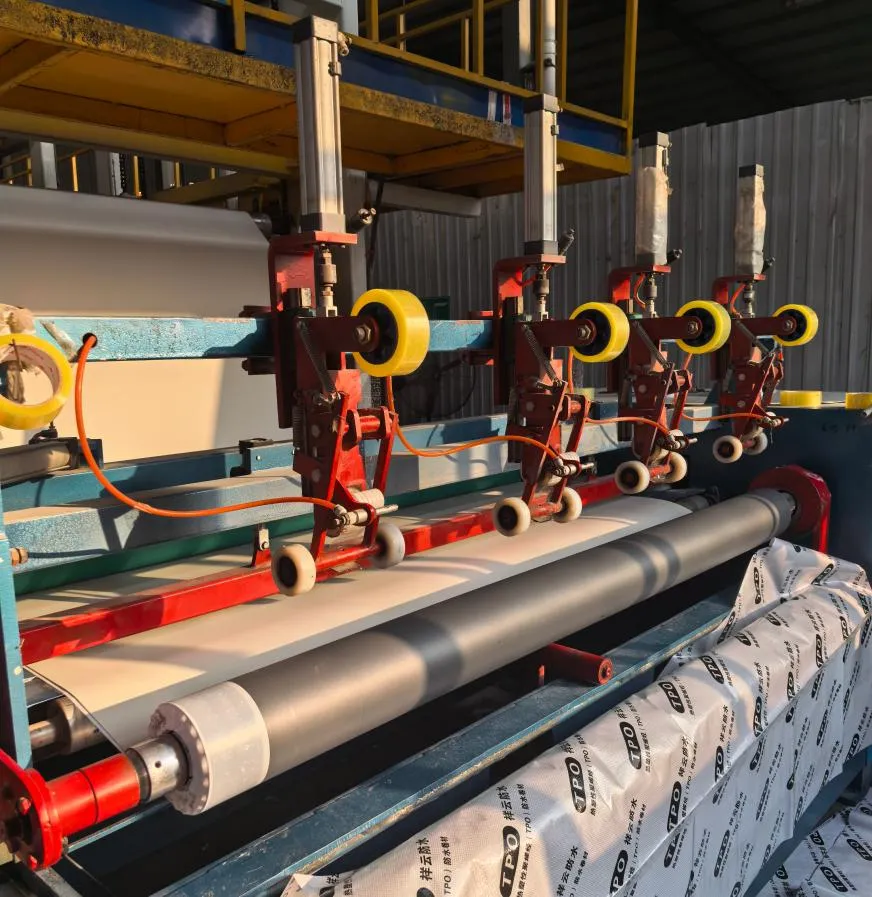

• Automatic Winding Machine: Produces tight, uniform rolls with programmable length, tension, and roll diameter.
• PLC Central Control System: A fully automated computer-controlled interface for monitoring and adjusting all parameters, ensuring repeatable quality.

Detailed Technical Specifications & Parameters

The performance of a PVC waterproof membrane production line is defined by its specifications. Below are the standard parameters for a Haiming Machinery line designed for high-output manufacturing.

Material Formula & Key Properties of the End Product

A successful membrane relies on both the equipment and the compound formula. The line must be optimized to process typical PVC-P (flexible PVC) formulations.

• Base Resin: PVC (Suspension Grade, K-value 65-70).
• Primary Plasticizer: DINP, DIDP, or DOTP (80-100 phr).
• Stabilizers: Ca/Zn or Ba/Zn complexes for heat stability.
• Fillers: Calcium Carbonate (fine grade, 20-50 phr).
• Other Additives: UV absorbers, antioxidants, pigments, flame retardants.

The resulting membrane from a Haiming line typically achieves these properties:

Frequently Asked Questions (FAQ)

What is the typical lead time for a complete PVC waterproof membrane production line from Haiming Machinery?

The lead time for a standard line is approximately 90 to 120 days from the receipt of deposit and confirmed technical specifications. This period includes manufacturing, assembly, and factory testing. For highly customized configurations or larger capacity lines, the timeline may extend to 150 days. We provide a detailed project schedule upon order confirmation.

How does Haiming Machinery ensure the line produces membranes with consistent thickness?

Consistency is achieved through a multi-point control system. First, our high-precision twin-screw extruder ensures a stable and homogeneous melt flow. Second, the calender unit is equipped with advanced roll bending and crossing systems (SKF or similar) to compensate for deflection across the roll face. Third, a beta-ray or infrared thickness gauge can be integrated for closed-loop, real-time feedback to the die bolt adjusters, automatically maintaining thickness within ±0.02mm.

What kind of after-sales support and training do you provide?

Haiming Machinery provides comprehensive support. This includes detailed installation supervision by our engineers, on-site commissioning and parameter tuning, and hands-on operation and maintenance training for your technical team. We supply a full set of manuals and software. Our warranty covers 12 months for major components. We also offer lifetime technical consultation and a ready supply of genuine spare parts.

Can the production line handle different colors and formulations, such as adding fiberglass reinforcement?

Yes, our lines are designed for flexible production. Quick color change is facilitated by the efficient screw design and purge sequences. For producing fiberglass-reinforced PVC membranes, the line can be integrated with a specialized in-line or off-line lamination unit that incorporates a fiberglass scrim between two layers of PVC melt. This requires specific die and laminating roll adaptations, which we can engineer as part of the line design.

What are the key factors affecting the energy consumption of the production line?

The main energy consumers are the extruder drive, barrel heaters, calender thermal oil unit, and cooling chillers. Consumption primarily depends on the production output (kg/h), the specific heat of the compound, and the target sheet thickness. Our lines are optimized for energy efficiency through features like high-torque/low-RPM extruder drives, insulated barrels, and heat recovery systems. A typical line may consume between 0.25 to 0.35 kWh per kilogram of finished product.

How do you address the issue of plasticizer fume emission during production?

This is a critical consideration for workplace safety and environmental compliance. Our standard line includes a localized fume extraction hood installed directly above the die, calender nip, and cooling section. This is connected to a centralized duct and an external fume scrubbing or electrostatic precipitation system (offered as an optional accessory). Proper extraction effectively removes volatile organic compounds (VOCs) from the production area.
