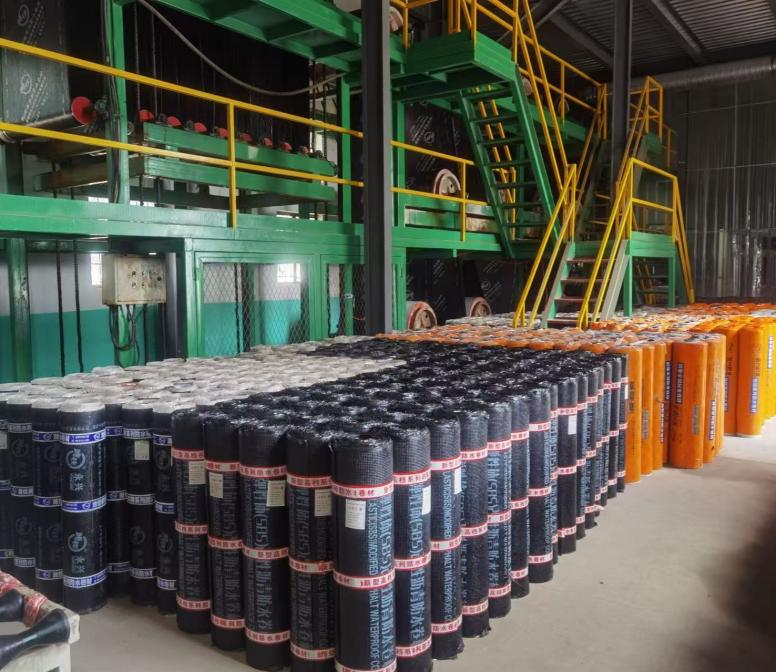

Bitumen Waterproof Membrane Production Line

Comprehensive Guide to the Bitumen Waterproof Membrane Production Line by Haiming Machinery

In the construction and roofing industries, the demand for high-quality, durable waterproofing materials is non-negotiable. A Bitumen Waterproof Membrane Production Line is the heart of manufacturing these critical components. For over two decades, Haiming Machinery has been at the forefront of engineering and supplying state-of-the-art, automated production lines that set the global standard for efficiency, reliability, and output quality. This detailed guide explores the intricacies of our production systems, providing you with the technical insight needed to make an informed investment.

Our production lines are engineered for precision, transforming raw materials—primarily bitumen (asphalt), polymers, and reinforcing carriers—into consistent, high-performance waterproofing rolls. The process integrates advanced technologies for mixing, coating, cooling, and finishing, ensuring every meter of membrane meets stringent international performance standards. Below, we break down the core components and technical parameters that define a world-class production line.

Core Components of the Production Line

A fully integrated Bitumen Waterproof Membrane Production Line from Haiming Machinery consists of several synchronized stations. Each plays a vital role in achieving the final product's specifications.

• Bitumen/Polymer Modifying & Storage System: High-capacity tanks with precise temperature control and agitation for preparing the modified bitumen compound.
• Automatic Dosing & Mixing Unit: Computer-controlled system for accurate ingredient proportioning and homogeneous mixing.
• Base Material Unwinding & Pre-heating Station: Handles rolls of fiberglass mat, polyester felt, or other carriers, applying initial heat for optimal coating adhesion.
• Precision Coating & Impregnating Section: Applies the modified bitumen onto the carrier material with controlled thickness and uniformity. This often includes both top and bottom coaters.
• Sand/PE Film Laminating Unit: For surface finishing, applying mineral granules or polyethylene film for protection and slip resistance.
• Cooling & Shaping Tower: A multi-tiered cooling conveyor that solidifies the membrane to the correct thickness and physical properties.
• Automatic Length Cutting & Winding Machine: Cuts the continuous membrane to specified roll lengths and winds them tightly for packaging.
• Centralized PLC Control System: The nerve center of the operation, allowing for monitoring and adjustment of all parameters from a single interface.

Detailed Technical Parameters & Specifications

The performance of a production line is defined by its specifications. Haiming Machinery offers customizable lines to suit various production scales. The following table outlines the standard parameters for our mid-to-high-capacity models.

Frequently Asked Questions (FAQ) About Bitumen Waterproof Membrane Production Lines

What types of waterproof membranes can be produced on this line?

The Haiming Machinery production line is highly versatile. It can manufacture a wide range of membranes, including APP (Atactic Polypropylene) modified bitumen membranes, SBS (Styrene-Butadiene-Styrene) modified bitumen membranes, plain asphalt felt, and self-adhesive membranes. By adjusting the raw material formula and process parameters, you can switch between product types efficiently.

What is the key to achieving consistent coating thickness and quality?

Consistency is achieved through three core elements: 1) A precisely controlled dosing and mixing system that ensures a homogenous bitumen compound. 2) Advanced coating heads with automatic thickness adjustment controlled by the PLC. 3) A stable and synchronized line speed. Our systems incorporate real-time monitoring and feedback loops to maintain tolerances within ±0.1 mm.

How automated is the production process? What level of manpower is required?

Haiming Machinery lines are designed for high automation. From raw material feeding to final winding and palletizing, the process is controlled via the central PLC. A standard operational shift typically requires only 3-4 personnel: one operator at the control station, one for base material loading/unloading, and one for quality inspection and packaging. This significantly reduces labor costs and human error.

What kind of after-sales support and training does Haiming Machinery provide?

We provide a comprehensive support package. This includes detailed installation supervision by our engineers, on-site operational training for your technical team, a complete set of manuals (electrical, mechanical, operational), and a generous supply of spare parts. We also offer remote diagnostic support and have service engineers available for urgent technical assistance.

What are the main factors affecting the production line's energy consumption?

The primary energy consumers are the bitumen heating/temperature maintenance systems and the cooling tower. Haiming Machinery addresses this by using insulated thermal oil pipes, high-efficiency burners, and optimized cooling fan arrays. Our control systems also allow for "eco-modes" during standby or lower output periods, managing energy use intelligently to reduce overall operational costs.

Can the production line be customized for specific regional standards or special products?

Absolutely. Customization is a cornerstone of our service. Whether you need to meet specific ASTM, EN, or other regional standards, or wish to produce specialized products like reflective membranes or reinforced layers for landfills, we can modify the line configuration, coating width, laminating options, and control software to meet your exact product specifications and certification requirements.

Key Features of the Haiming Machinery Production Line

• High-Precision Metering: Gravimetric or volumetric feeders ensure accuracy of every raw material input, critical for product consistency and cost control.
• Dual-Stage Coating & Impregnation: Guarantees complete saturation of the reinforcement carrier, eliminating dry spots and ensuring superior mechanical strength.
• Intelligent Temperature Control: Multi-zone temperature management throughout the process, from mixing tanks to coating heads, for optimal bitumen viscosity and performance.
• Robust Cooling System: Features a multi-level conveyor with adjustable fan speed for rapid and uniform cooling, which is essential for membrane stability and preventing blocking.
• Industry 4.0 Ready: PLC systems equipped with data logging, production reporting, and potential for integration into wider factory MES (Manufacturing Execution Systems).
• Durability & Low Maintenance: Constructed with high-grade steels and components from reputable international suppliers (e.g., Siemens, SEW-Eurodrive) to ensure long service life and minimal downtime.

Production Process Flow Overview

1. Raw Material Preparation: Bitumen and modifiers (APP, SBS) are heated and precisely mixed in modified bitumen tanks.
2. Base Feed-in: The reinforcement carrier (mat or felt) is fed from an unwinder and passes through a pre-heating zone.
3. Coating & Impregnation: The pre-heated carrier is saturated and coated with the hot modified bitumen in one or two stages.
4. Surface Treatment: The coated material immediately passes under a surfacing unit, which applies mineral granules or a PE film.
5. Cooling & Solidification: The membrane travels upward through the cooling tower, where it is gradually solidified by ambient air.
6. Cutting & Winding: The cooled membrane is automatically cut to length, and the finished rolls are wound, ejected, and prepared for packaging.
7. Quality Control & Packaging: Rolls are weighed, inspected, labeled, and wrapped for storage or shipment.
