SBS and App Bitumen Waterproof Membrane Production Line

The SBS and APP Bitumen Waterproof Membrane Production Line by Haiming Machinery integrates base material, modified bitumen coating, and surface finishing processes to achieve efficient and stable production. The line features PLC automatic control and can easily switch between SBS and APP formulas to meet different climate and project requirements.

Production Line Structure and Process

1. Structure Components

• Base Material: Polyester (PY), Fiberglass (G)
• Modified Bitumen Coating: SBS / APP powder + filler + anti-aging additives
• Surface Finish: Top surface: PE film / sand / shale, Bottom surface: PE release film

2. Production Process

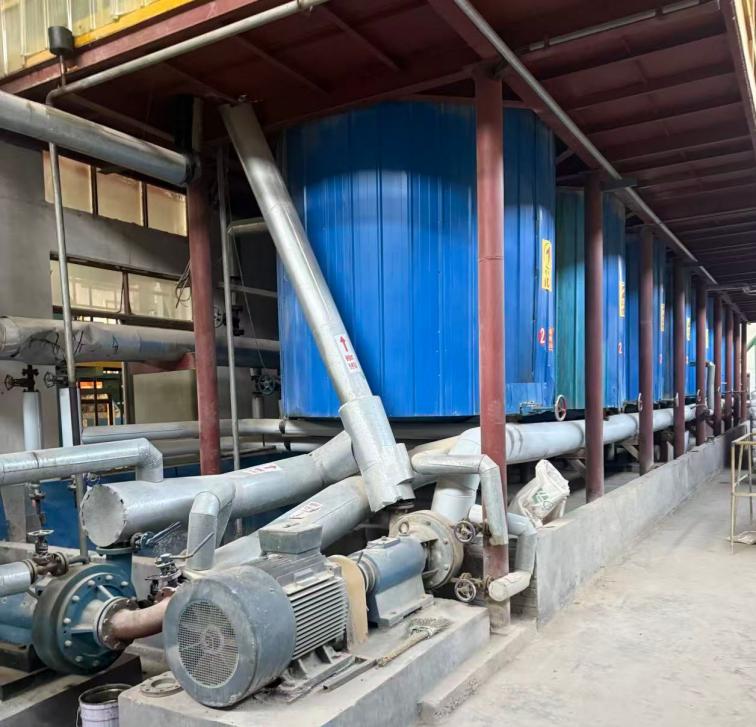

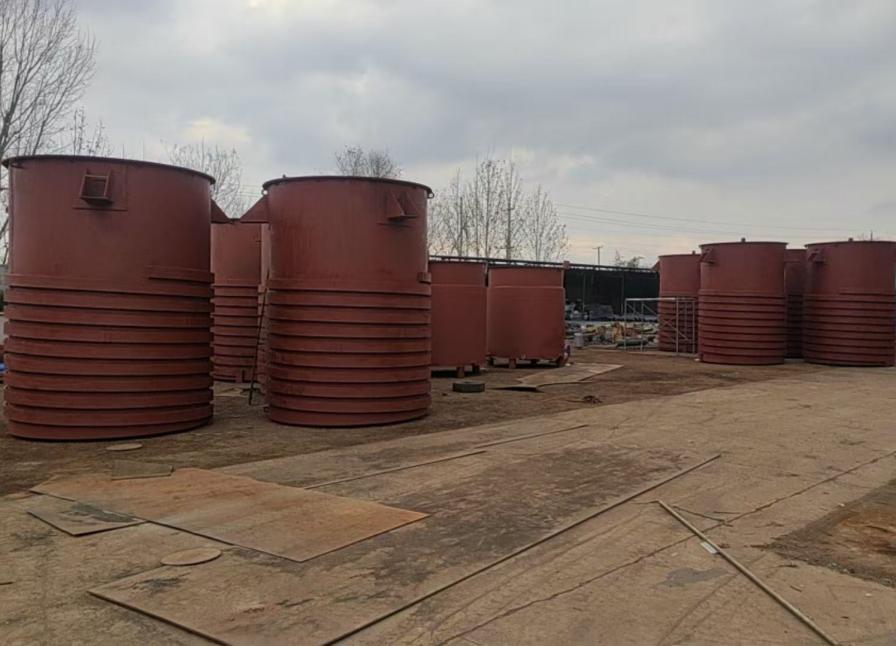

1. Asphalt Melting & Storage: Heating, dehydration, and temperature maintenance
2. Modified Bitumen Preparation: High-speed colloid milling for uniform dispersion
3. Base Material Unwinding & Drying: Preheating and flattening to ensure alignment
4. Coating & Laminating: Double-sided coating with precise thickness control
5. Surface Finishing: Sanding, shale application, or PE film covering
6. Cooling & Setting: Water or air cooling for stabilization

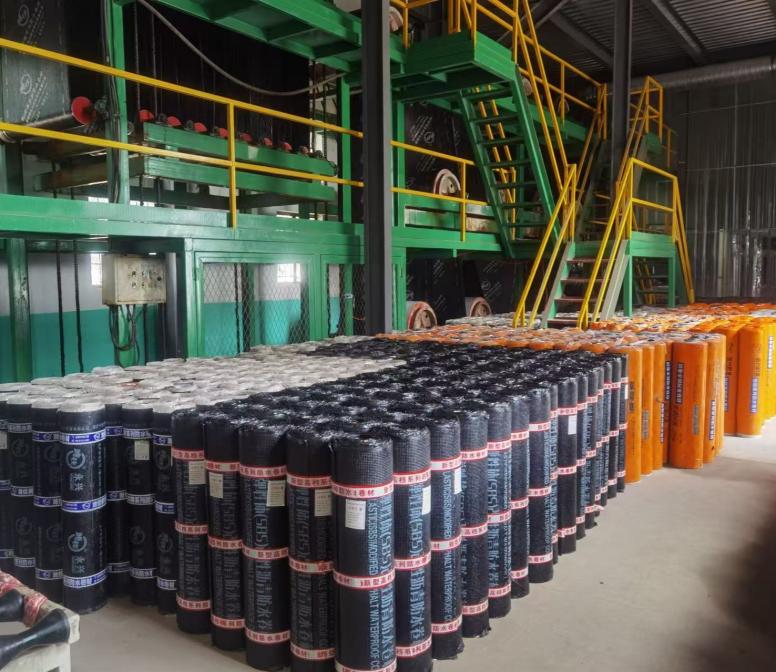

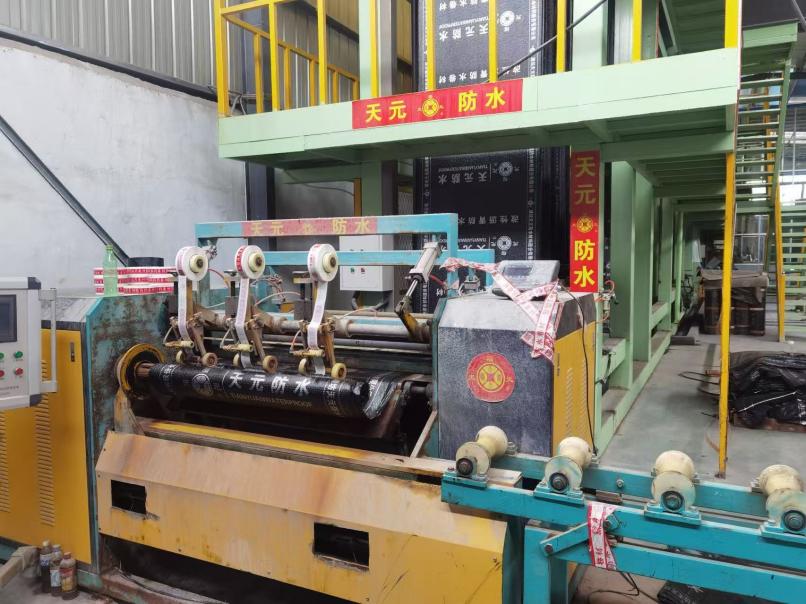

7. Cutting, Rolling & Stacking: Automatic final product handling

Core Equipment

Technical Parameters

SBS vs APP

• SBS: Low-temperature flexibility, suitable for cold regions
• APP: High-temperature resistance, suitable for hot and exposed roofs
• One production line can switch formulas to produce either SBS or APP membranes

Applicable Projects

• Roof waterproofing
• Basement floor and roof slabs
• Subways, tunnels, bridges
• Garages and civil defense structures
• Kitchens, bathrooms, and water tanks (auxiliary waterproofing)

Investment & Line Selection

• Small Workshop: 1–2 million RMB, simple line
• Standard Plant: 3–6 million RMB, fully automatic line
• High-speed & Premium Line: 8–15 million RMB

Why Choose Haiming Machinery

• Experience: Specialized in waterproof membrane equipment since 2007
• Flexible Production: SBS/APP formulas can be switched according to project requirements
• Energy Saving: Mature processes reduce operating costs
• Environmental Design: Equipped with dust and odor removal systems (>90% efficiency)

FAQ

Q1: Can one production line produce both SBS and APP membranes?

A1: Yes, by adjusting the modified bitumen formula, the line can switch between SBS and APP production.

Q2: What membrane widths are supported?

A2: Standard widths are 1.0m and 1.05m. Custom widths are also available.

Q3: What is the annual production capacity?

A3: Standard lines produce 3–6 million m² per year, high-speed fully automatic lines can reach 8–12 million m² per year.

Q4: What is the investment range?

A4: Small workshops 1–2 million RMB, standard lines 3–6 million RMB, high-speed premium lines 8–15 million RMB.
