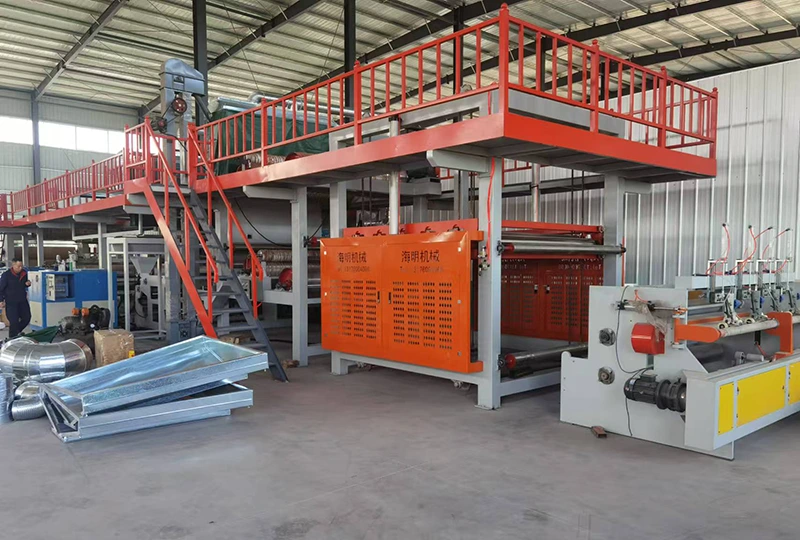

TPO Self-Adhesive Film Waterproofing Material Production Line

Haiming Machinery is one of China manufacturer & supplier who mainly produces TPO Self-Adhesive Film Waterproofing Material Production Line with many years of experience. Hope to build business relationship with you.TPO self-adhesive film waterproofing material production line is a professional equipment used to produce thermoplastic polyolefin (TPO) self-adhesive waterproof membrane. The following is its related introduction:

Production process

Raw material preparation: Mix thermoplastic polyolefin resin, antioxidant, anti-aging agent, softener and other raw materials in a certain proportion.

Extrusion molding: The mixed raw materials are extruded through an extruder to form a TPO sheet. Parameters such as the temperature, pressure and screw speed of the extruder have an important influence on the quality of the sheet.

Composite reinforcement layer: Add a polyurethane mesh reinforcement layer in the middle of the extruded TPO sheet to improve the strength and durability of the roll.

Surface treatment: Attach materials such as fabric fibers or aluminum film to the surface of the TPO sheet to increase the wear resistance and weather resistance of the roll.

Coating self-adhesive: Coat the back of the TPO sheet with self-adhesive to make it self-adhesive. The performance of the self-adhesive directly affects the bonding strength and waterproof effect of the roll.

Cooling and shaping: The roll coated with self-adhesive is cooled and shaped by a cooling device to reach the specified size and shape.

Winding and packaging: The coiled material after cooling and shaping is wound by the winder and then packaged for storage and transportation.

Equipment composition

Extruder: It is the core equipment of the production line, used to extrude the raw materials into TPO sheets. Common extruders include single-screw extruders and twin-screw extruders. Twin-screw extruders have the advantages of uniform mixing and large extrusion volume.

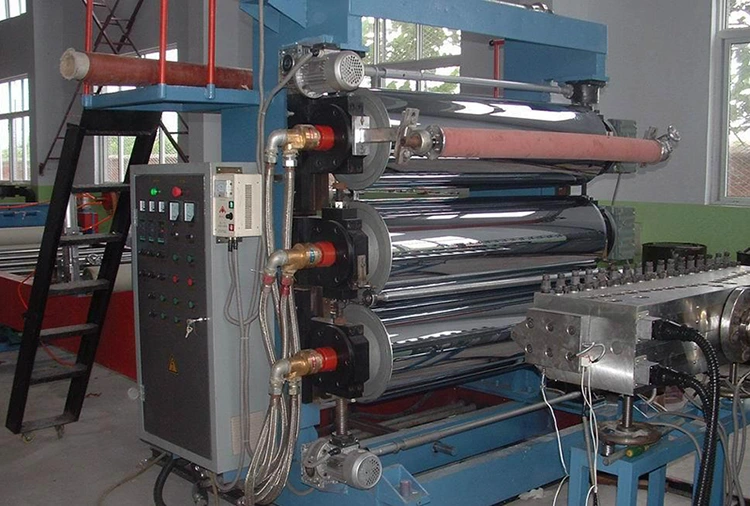

Three-roll calender: It is used to calender the extruded TPO sheet to make its surface smooth and flat, and improve the appearance quality of the coil.

Cooling bracket: It is located at the rear end of the three-roll calender, and several cooling rollers are connected to it for cooling and shaping the TPO sheet.

Tractor: It is used to haul the TPO sheet so that it can run continuously on the production line.

Storage rack: It is used to store a certain length of TPO sheet to ensure the continuity of production.

Glue coating machine: It is used to coat the back of the TPO sheet with self-adhesive glue.

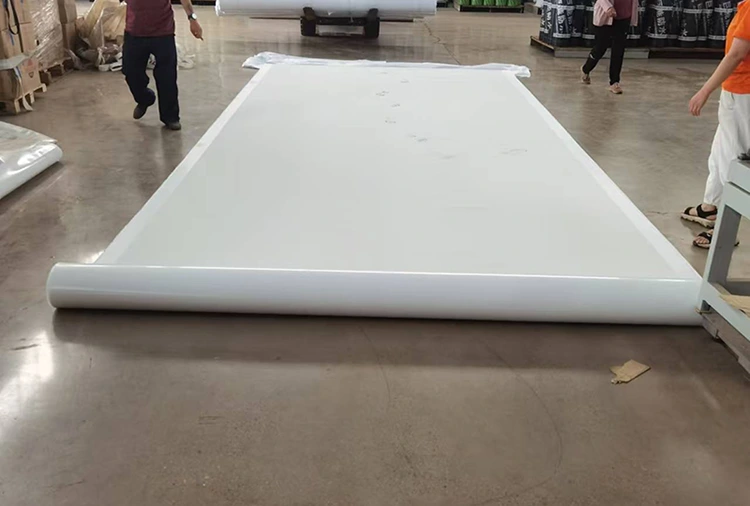

Winding machine: used to roll up the produced TPO self-adhesive waterproofing membrane.

Technical parameters

Product width: generally between 2000mm-3000mm, can be customized according to customer needs.

Product thickness: usually between 1mm-3mm.

Output: Depending on the configuration of the production line and the production process, the output also varies, generally between 500kg/h-1500kg/h.

Line speed: The running speed of the production line is generally between 5m/min-15m/min.

Advantages

High production efficiency: high degree of automation, fast production speed, can meet the needs of large-scale production.

Good product quality: using advanced production technology and equipment, the TPO self-adhesive waterproofing membrane produced has excellent weather resistance, flexibility and bonding strength.

Energy saving and environmental protection: low energy consumption and less waste in the production process, in line with environmental protection requirements.

Low production cost: The equipment investment of the production line is relatively low, and the utilization rate of raw materials in the production process is high, which reduces the production cost.

Application field

Building roof waterproofing: It is used for roof waterproofing projects of various industrial and civil buildings, such as factories, warehouses, and houses, which can effectively prevent rainwater penetration and extend the service life of the roof.

Basement waterproofing: In basement waterproofing projects, TPO self-adhesive waterproofing membranes can be tightly bonded with concrete structures to form a reliable waterproof layer to prevent groundwater leakage.

Tunnel waterproofing: It is suitable for waterproofing underground projects such as highway tunnels and railway tunnels. It has good water resistance and puncture resistance, and can resist the erosion of groundwater and geological disasters.

Pool waterproofing: It can be used for waterproofing of various pools, water tanks and other hydraulic structures, such as swimming pools, sewage treatment pools, etc., which can ensure the sealing and durability of the pool.
