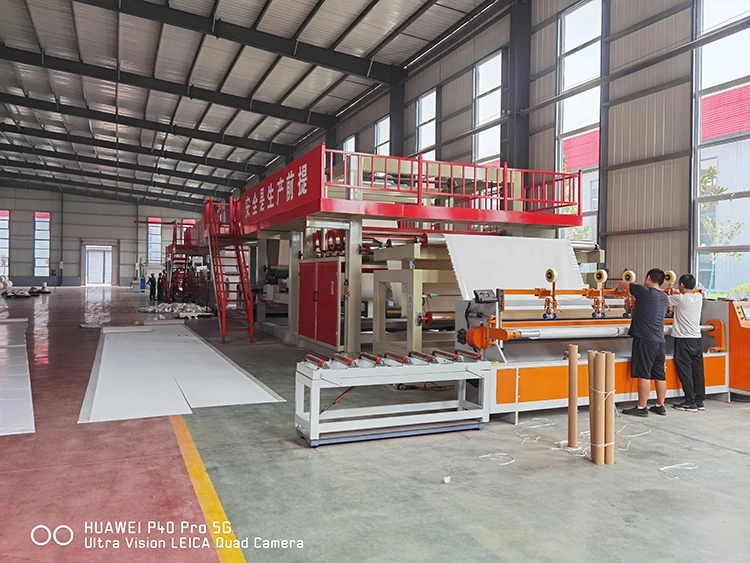

Reinforced TPO Waterproofing Membrane Production Line

Haiming Machinery is one of the professional Reinforced TPO Waterproofing Membrane Production Line manufacturer and supplier in China. Our products are CE certified and have in stock of factory, welcome to buy Reinforced TPO Waterproofing Membrane Production Line from us. Reinforced TPO waterproofing membrane production line the enhanced tpo waterproof membrane production line is a professional equipment used to produce high-performance waterproof membranes. The following is its introduction:

Production process

Raw material preparation: Thermoplastic polyolefin (TPO) resin, antioxidant, anti-aging agent, softener and other raw materials are accurately measured and mixed in a certain proportion.

Extrusion molding: The mixed raw materials are heated and plasticized by an extruder, and extruded to form a continuous TPO sheet.

Reinforcement treatment: Add a reinforcement layer such as polyurethane mesh cloth in the middle of the extruded TPO sheet, and make it closely combined with the TPO sheet through a specific composite process to improve the strength and durability of the coil.

Surface treatment: Fabric fibers, aluminum film and other materials are attached to the surface of the TPO coil to increase the wear resistance, weather resistance and aesthetics of the coil.

Cooling and shaping: The coil after composite and surface treatment is cooled and shaped by a cooling device to achieve the best physical properties.

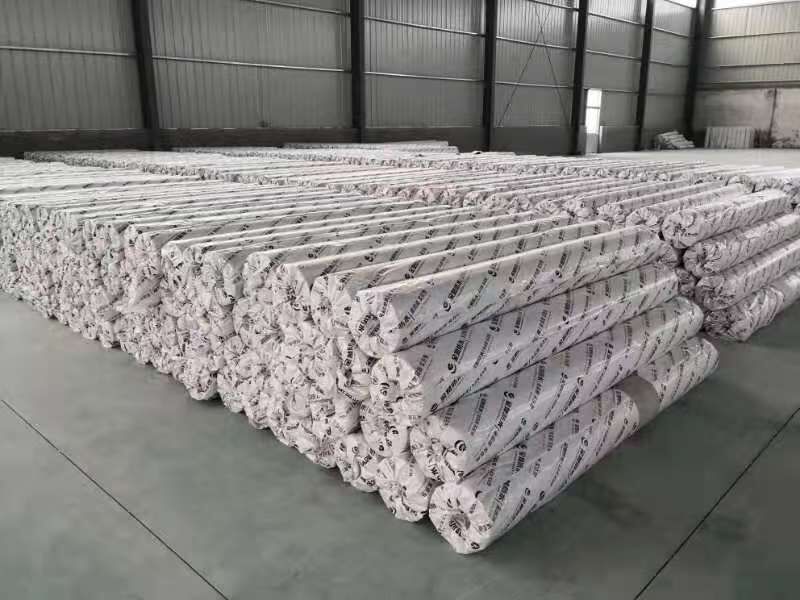

Trimming and winding: The coil after cooling and shaping is trimmed to remove irregular edges, and then the coil is rolled into a roll by a winding device for storage and transportation.

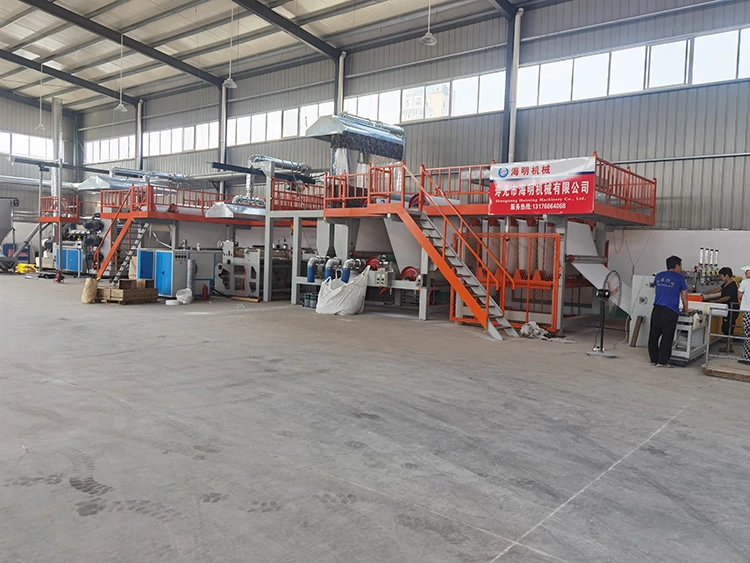

Equipment composition

Extruder: It is the core equipment of the production line, responsible for heating and plasticizing the raw materials and extruding them into shape. Common extruders include single-screw extruders and twin-screw extruders. Choose the appropriate extruder model according to production needs and process requirements.

Composite equipment: It is used to compound the reinforcement layer with the TPO sheet, such as hot pressing compounding machine, adhesive compounding machine, etc. These equipment can ensure the bonding strength between the reinforcement layer and the TPO sheet and improve the overall performance of the coil.

Cooling device: It includes cooling water tanks, cooling rollers, etc., which are used to quickly cool and shape the coil after extrusion to ensure the dimensional accuracy and physical properties of the coil.

Trimming equipment: It is used to trim the coil, remove burrs and irregular parts on the edge, and make the edge of the coil neat and smooth.

Reeling equipment: Reel the coil after cooling and shaping. Common reeling equipment includes center reeling machine and surface reeling machine. Choose the appropriate reeling method according to the width and thickness of the coil.

Technical parameters

Product width: generally about 2 meters, such as the TPO waterproofing membrane production line produced by Haiming Machinery, the product width can reach 2100mm.

Product thickness: usually between 1mm-3mm.

Output: Depending on the scale of the production line and the performance of the equipment, the output varies, generally around 1000 kg to 1300 kg per hour.

Line speed: The running speed of the production line, generally around 10 meters to 15 meters per minute.

Application areas

Roof waterproofing: widely used in roof waterproofing projects of various buildings, such as industrial plants, residential buildings, commercial buildings, etc., which can effectively prevent rainwater penetration and extend the service life of the roof.

Basement waterproofing: used for waterproofing treatment of the exterior walls, floor plates and other parts of the basement, which can resist the pressure and erosion of groundwater and ensure the dryness and safety of the basement.

Tunnel waterproofing: In tunnel projects, enhanced TPO waterproofing membranes can be used for waterproofing of lining structures, preventing groundwater leakage and improving the structural stability of tunnels.

Advantages

Excellent weather resistance: TPO material has good resistance to UV rays, ozone, high and low temperature, and can be used for a long time in harsh natural environments without aging or cracking.

High strength and durability: The middle reinforcement layer improves the tensile strength and puncture resistance of the membrane, making it more durable and resistant to damage.

Good flexibility: TPO waterproof membrane is soft and elastic, can adapt to the deformation and cracking of the base layer, and effectively prevent the damage of the waterproof layer.

Environmental protection and energy saving: TPO material is a thermoplastic elastomer that can be recycled and meets environmental protection requirements. At the same time, its surface is smooth, with high reflectivity, and has a certain energy-saving effect.

Easy construction: The reinforced TPO waterproof membrane is light in weight and easy to carry and construct. A variety of construction methods such as welding and bonding can be used, with fast construction speed and easy quality assurance.
