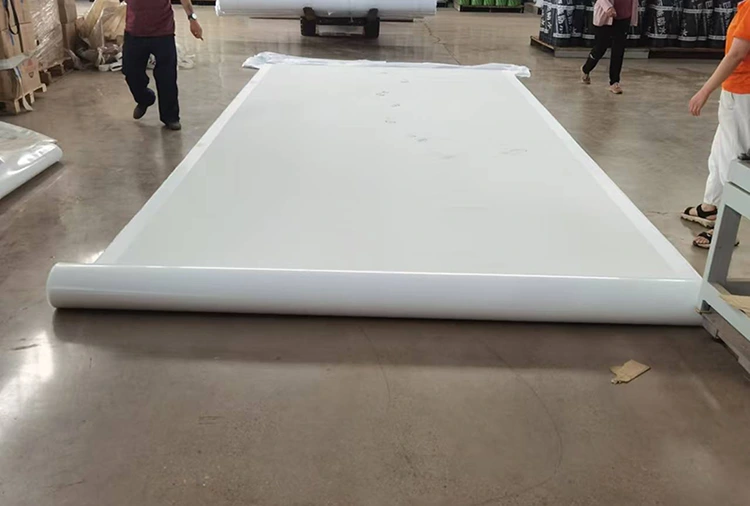

Thermoplastic Polyolefin TPO Waterproofing Membrane

One of the Chinese companies offering Thermoplastic Polyolefin TPO Waterproofing Membrane for wholesale is Haiming Machinery. For you, we can offer better pricing and competent service. Should you be intrigued by Thermoplastic Polyolefin TPO Waterproofing Membrane, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure. Thermoplastic polyolefin TPO waterproofing membrane is a professional equipment used to produce high-performance waterproofing membrane. The following is its related introduction:

Production process

Raw material preparation: Thermoplastic polyolefin (TPO) resin, antioxidant, anti-aging agent, softener and other raw materials are accurately measured and mixed in a certain proportion.

Extrusion molding: The mixed raw materials are heated and plasticized by an extruder and extruded to form a continuous TPO sheet.

Reinforcement treatment: Add a reinforcement layer such as polyurethane mesh to the middle of the extruded TPO sheet, and make it closely combined with the TPO sheet through a specific composite process to improve the strength and durability of the membrane.

Surface treatment: Fabric fibers, aluminum films and other materials are attached to the surface of the TPO membrane to increase the wear resistance, weather resistance and aesthetics of the membrane.

Cooling and shaping: The composite and surface-treated membrane is cooled and shaped by a cooling device to achieve the best physical properties.

Trimming and winding: trimming the coil after cooling and shaping, removing the irregular parts of the edge, and then winding the coil into a roll through the winding device for storage and transportation.

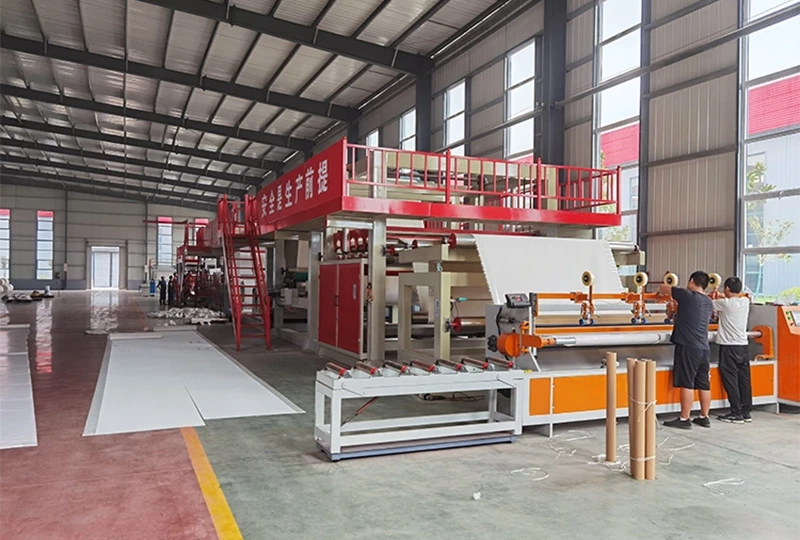

Equipment composition

Extruder: It is the core equipment of the production line, responsible for heating and plasticizing the raw materials and extruding them. Common extruders include single-screw extruders and twin-screw extruders. Choose the appropriate extruder model according to production needs and process requirements.

Composite equipment: used to composite the reinforcement layer with the TPO sheet, such as hot pressing composite machine, adhesive composite machine, etc. These equipment can ensure the bonding strength between the reinforcement layer and the TPO sheet and improve the overall performance of the coil.

Cooling device: including cooling water tank, cooling roller, etc., used to quickly cool and shape the coil after extrusion to ensure the dimensional accuracy and physical properties of the coil.

Trimming equipment: used to trim the coil, remove burrs and irregular parts on the edge, and make the edge of the coil neat and smooth.

Winding equipment: Wind the coiled material after cooling and shaping. Common winding equipment includes center winder and surface winder. Choose the appropriate winding method according to the width and thickness of the coiled material.

Technical parameters

Product width: generally about 2 meters, such as the TPO waterproofing coil production line produced by Haiming Machinery, the product width can reach 2100mm.

Product thickness: usually between 1mm-3mm.

Output: Depending on the scale of the production line and the performance of the equipment, the output varies, generally around 1000 kg to 1300 kg per hour.

Line speed: The running speed of the production line is generally around 10 meters to 15 meters per minute.

Application field

Roof waterproofing: Widely used in roof waterproofing projects of various buildings, such as industrial plants, residential buildings, commercial buildings, etc., which can effectively prevent rainwater penetration and extend the service life of the roof.

Basement waterproofing: used for waterproofing of the outer walls, floor and other parts of the basement, which can resist the pressure and erosion of groundwater and ensure the dryness and safety of the basement.

Tunnel waterproofing: In tunnel engineering, enhanced TPO waterproofing membrane can be used for waterproofing of lining structures, preventing groundwater leakage and improving the structural stability of tunnels.

Advantages

Excellent weather resistance: TPO material has good resistance to UV rays, ozone, high and low temperature, and can be used for a long time in harsh natural environments without aging or cracking.

High strength and durability: The middle reinforcement layer improves the tensile strength and puncture resistance of the membrane, giving it better durability and anti-destruction ability.

Good flexibility: TPO waterproofing membrane is soft and elastic, can adapt to the deformation and cracking of the base layer, and effectively prevent the damage of the waterproof layer.

Environmental protection and energy saving: TPO material is a thermoplastic elastomer that can be recycled and meets environmental protection requirements. At the same time, its surface is smooth and has high reflectivity, which has a certain energy-saving effect.

Easy construction: The enhanced TPO waterproof membrane is light in weight and easy to carry and construct. It can be constructed by a variety of methods such as welding and bonding, with fast construction speed and easy quality assurance.
