TPO Butyl Self-Adhesive Waterproofing Material Equipment

TPO Butyl Self-Adhesive Waterproofing Material Equipment

As a professional TPO Butyl Self-Adhesive Waterproofing Material Equipment manufacturer, you can rest assured to buy TPO Butyl Self-Adhesive Waterproofing Material Equipment from our factory and Haiming Machinery will offer you the best after-sale service and timely delivery.

Extruder

Function: Heat and melt the thermoplastic polyolefin (TPO) raw material, and extrude it to form a continuous sheet or coil matrix.

Type: Common ones are single-screw extruders and twin-screw extruders. Twin-screw extruders are better in material mixing, plasticizing and conveying, and can produce TPO coils with more stable quality. For example, the flat double GWP95 model produced by Haiming Machinery Co., Ltd. has an output of up to 1300KG/H.

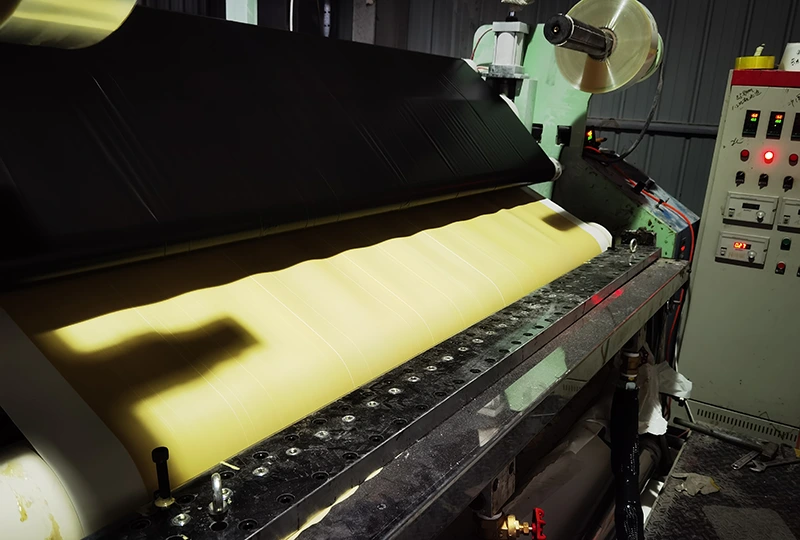

Laminating equipment

Function: Lay the self-adhesive layer with the TPO coil matrix to form a self-adhesive TPO waterproof coil.

Method: There are hot melt lamination and coating lamination. Hot melt lamination is to heat and melt the self-adhesive and then bond it with the TPO coil; coating lamination is to evenly coat the liquid self-adhesive on the surface of the TPO coil, and then combine it with the coil through drying, curing and other processes.

Unwinding device

Function: used to place and release reinforcing materials, such as polyester fiber mesh cloth, glass fiber mesh cloth, etc., so that the reinforcing materials can accurately enter the composite process and be composited with the TPO roll matrix to improve the strength and performance of the roll.

Rewinding device

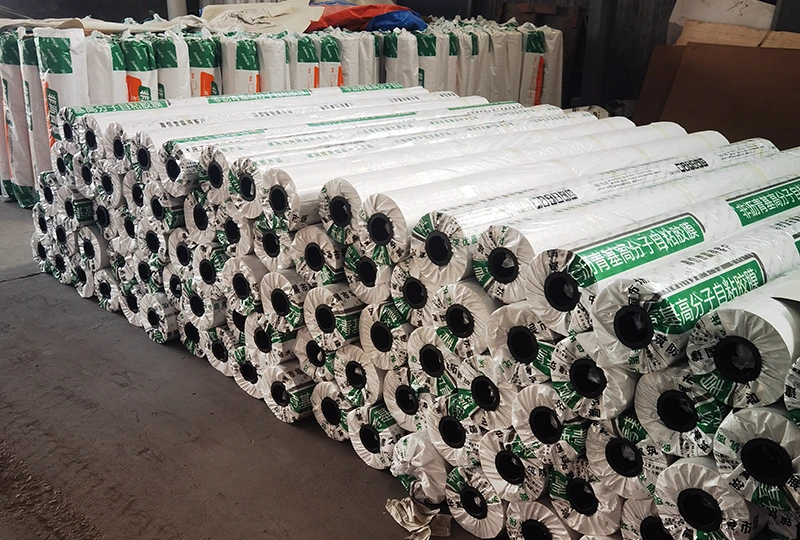

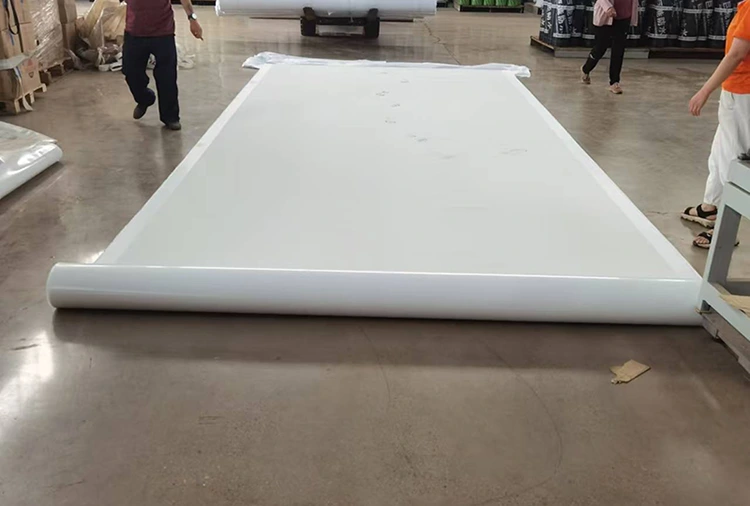

Function: neatly roll up the produced self-adhesive TPO waterproof roll for easy storage, transportation and subsequent use.

Type: There are center rewinding and surface rewinding methods. The appropriate rewinding method can be selected according to factors such as the width, thickness and production speed of the roll.

Cutting equipment

Function: Cut the continuously produced self-adhesive TPO waterproof roll according to the specified length or size to obtain the roll product of the required specifications.

Type: Common ones are mechanical cutters and laser cutters. Mechanical cutters achieve cutting through the rotation or reciprocating motion of the cutter. For example, the cutting knife in the polymer self-adhesive film waterproof roll processing equipment of Xingshidun New Materials Co., Ltd. is set on the rotating shaft of the drive motor, and the motor drives the rotation for cutting.

Heating equipment

Function: During the production process, TPO raw materials, self-adhesives and composite coils need to be heated to meet the temperature requirements of extrusion, composite, curing and other processes.

Type: There are heating ovens, heating rollers, etc. The heating oven heats the coils through hot air circulation to dry and cure the self-adhesives; the heating rollers heat the roller surface through the internal heating elements, and the coils are heated when passing through the heating rollers.

Cooling equipment

Function: After heating processes such as extrusion and composite, the coils need to be cooled to quickly shape them and improve the dimensional stability and physical properties of the coils.

Type: Common ones include cooling water tanks, air cooling devices, etc. The cooling water tank cools the coils through the cooling water in the water tank; the air cooling device cools the coils by blowing the cold air generated by the fan.

Control system

Function: Control and monitor the operation of the entire production equipment, including temperature control, speed control, pressure control, tension control, etc., to ensure the stability of the production process and the consistency of product quality.

Composition: Usually composed of PLC (Programmable Logic Controller), touch screen, sensor, frequency converter, etc. Operators can set production parameters through the touch screen, PLC controls the operation of each device according to the set parameters, sensors monitor the temperature, speed, pressure and other parameters in the production process in real time, and feed back the signal to PLC, and the frequency converter is used to adjust the speed of the motor to achieve precise control of the production speed.
