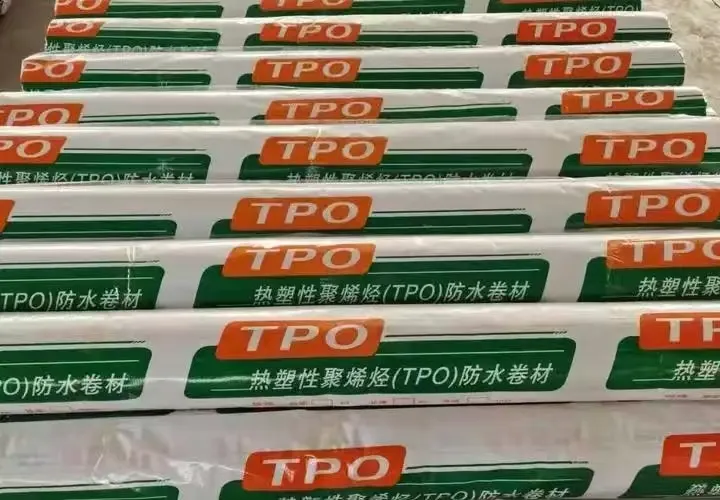

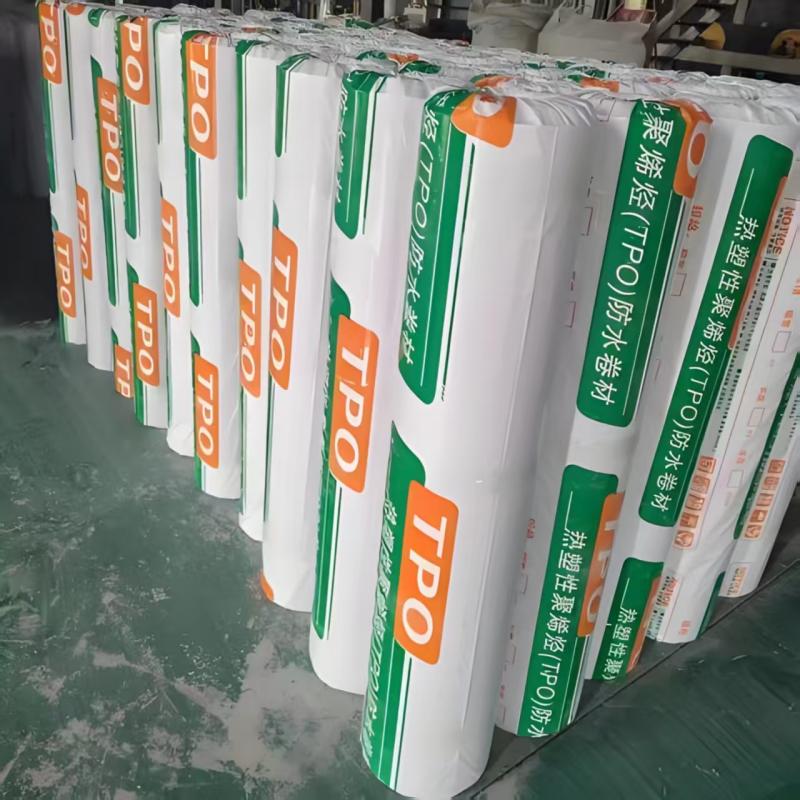

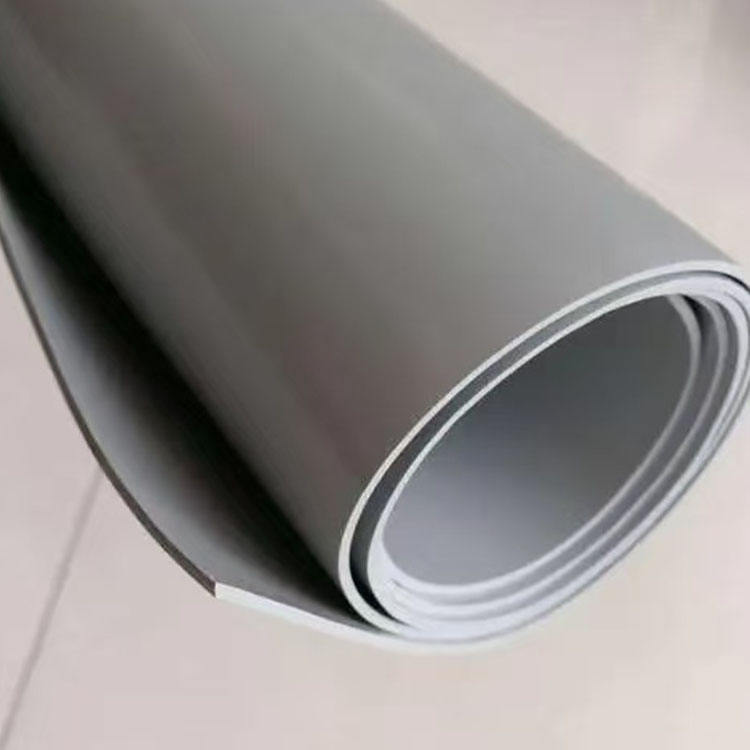

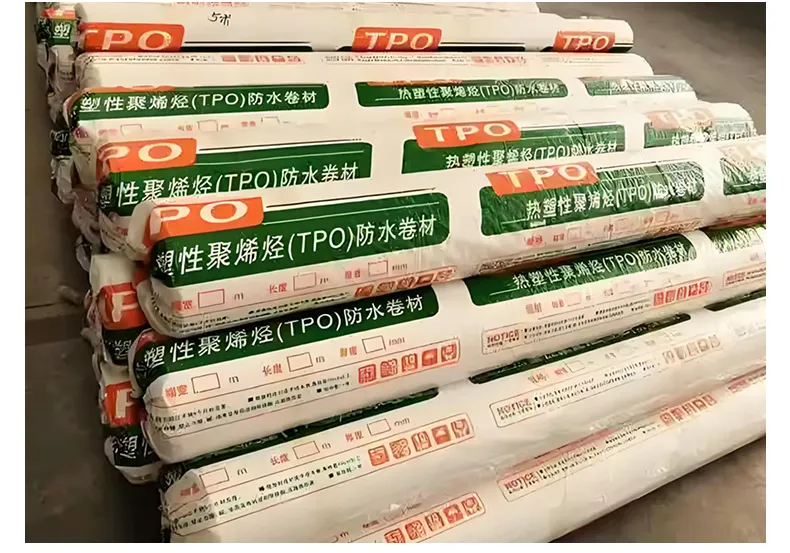

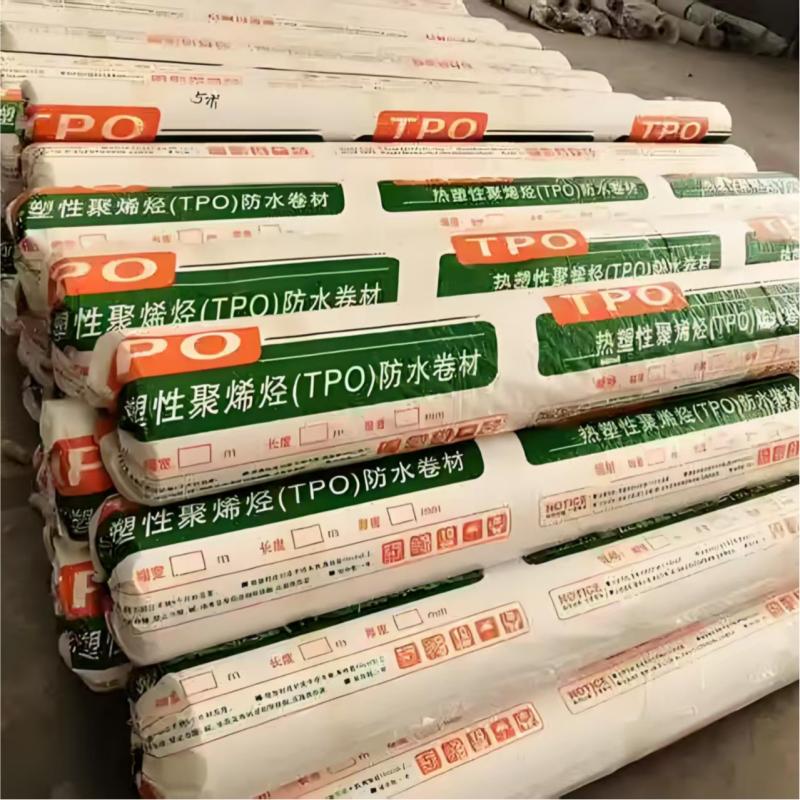

TPO Waterproof Membrane

We at Haiming Machinery combine German-engineered extrusion lines with high-purity polyolefin resins. The result is a lightweight yet puncture-resistant TPO Waterproof Membrane suitable for both exposed roofing and buried underground applications.

Haiming Machinery offers three structural variants of TPO Waterproof Membrane to match any project requirement:

【Material Structure & Composition】

Understanding the layered design of our TPO Waterproof Membrane helps engineers and contractors specify the correct product for their specific application.

1. UV-Resistant Top Layer (Weathering Surface)

• Material: High-stabilized TPO resin with advanced anti-aging additives.
• Function: Contains concentrated anti-aging agents to resist UV radiation, ozone cracking, and chemical exposure. The white or light-colored surface reflects solar heat, reducing building cooling loads and contributing to LEED certification points.
• Performance: Passes 10,000 hours of accelerated UV aging testing.

2. Middle Reinforced Layer (Optional – L-Type Only)

• Material: Polyester fiber scrim or fiberglass mesh.
• Function: Acts as the reinforcement layer, dramatically improving tensile strength and dimensional stability. This prevents TPO Waterproof Membrane from shrinking, stretching, or deforming under high wind loads, thermal cycling, or substrate movement.
• Benefit: Achieves tensile strength >120 N/cm (per DIN 16726).

3. Backing Layer (Optional – P-Type Only)

• Material: Non-woven polyester fabric or pressure-sensitive self-adhesive compound.
• Function: For P-Type rolls, the fabric backing creates a full-adhesion mechanical bond with fresh concrete or existing substrates, eliminating lateral water migration (channeling) underneath the membrane.

4. Bottom Contact Surface (All Types)

• Function: Designed for clean, consistent heat welding or adhesive application.

【Five Core Advantages of Haiming Machinery TPO Waterproof Membrane】

We have engineered our TPO Waterproof Membrane to outperform traditional options across five critical metrics.

1. Superior Environmental Performance

• No chlorides or plasticizers – Zero harmful gas emissions during production, welding, or service life.
• 100% recyclable – End-of-life membrane can be reprocessed into new TPO products.
• Supports LEED v4.1 MR Credit: Building Product Disclosure and Optimization.

2. Extreme Weather Resistance

• Service temperature range: -40°C to +120°C.
• Excellent UV and ozone resistance.
• We have tested our TPO Waterproof Membrane in desert, tropical, and sub-arctic conditions – consistent performance confirmed after 30+ years of real-world use.

3. Reliable Waterproofing Performance

• Dense, non-porous material matrix.
• Hot air welding creates seams with strength equal to the parent material.
• No seam failure → no lateral water migration (channeling).

4. Excellent Mechanical Properties

• Tensile strength (reinforced type): ≥120 N/cm.
• Elongation at break: ≥600% (H-Type).
• Accommodates significant structural settlement, expansion, contraction, and vibration.

5. Fast & Flexible Installation

• Compatible with heat welding (most common), mechanical fastening, full adhesion, and pre-applied reverse adhesion methods.
• Welding speeds reach 8-12 meters per minute with proper equipment.
• Our TPO Waterproof Membrane is lightweight, reducing transportation costs and labor fatigue.

【Technical Specifications Table】

Property	Unit	Haiming-TPO (Standard Value)	Test Standard
Thickness	mm	1.2 / 1.5 / 2.0 (±5%)	GB/T 18173.1
Width	m	1.0 / 2.0 / 2.4	--
Length	m	20 / 25 / 30 (custom available)	--
Tensile Strength (L-Type)	N/cm	≥ 120	DIN 16726
Elongation at Break (H-Type)	%	≥ 600	GB/T 528
Tear Resistance	N	≥ 200	GB/T 529
Low Temperature Bend	°C	-40°C (no cracks)	GB/T 328.15
Heat Aging Resistance	--	115°C for 28 days – no change	GB/T 18244
Water Vapor Permeability	g/(m²·d)	≤ 1.0	ASTM E96
UV Exposure Test	hours	≥ 10,000 (no surface degradation)	ASTM G154
Wind Uplift Resistance	--	Passes FM 4470 Class 1-90	FM Approvals

【Application Scenarios – Where to Use Our TPO Waterproof Membrane】

We recommend Haiming Machinery TPO Waterproof Membrane for the following environments:

Large Public Buildings & Commercial Complexes

• Shopping malls, exhibition centers, hospitals, schools.
• Especially suitable for green buildings and LEED-certified projects.

Transportation Hubs

• Airport terminals, high-speed railway stations, bus depots.
• High foot traffic and vibration – TPO Waterproof Membrane resists puncture and fatigue.

Industrial Facilities & Logistics Warehouses

• Manufacturing plants, cold storage, chemical workshops requiring corrosion resistance.
• Our TPO Waterproof Membrane withstands chemical exposure better than PVC or EPDM.

Green Roofs & Rooftop Gardens

• Requires root-resistant grade – we offer TPO membranes that pass the EN 13948 root resistance test.
• Protects structural concrete from root penetration and moisture damage.

Existing Roof Renovation (Overlay Systems)

• Can be installed directly over existing built-up roofs, modified bitumen, or single-ply membranes.
• No tear-off required → reduces landfill waste and renovation time.

Underground Waterproofing

• Basements, tunnels, foundation walls, parking structures.
• P-Type TPO Waterproof Membrane with non-woven backing bonds permanently to poured concrete.

【Installation Methods – Step by Step】

We train contractors and roofing crews on four proven methods for installing TPO Waterproof Membrane .

Hot Air Welding (Most Common – Recommended)

• Equipment: Automatic hot air welder (or hand-held hot air gun for details).
• Process: Heat the overlap seam to melting point → immediately press with silicone roller.
• Result: Seam strength equals parent material (destructive testing confirms).
• Speed: 8-12 meters per minute with automatic welder.

Mechanical Fastening (For Large Roof Areas)

• Process: Membrane is loosely laid → fasteners and plates installed through seam overlaps → seams welded.
• Best for: High wind uplift zones, metal deck substrates.
• Advantage: No adhesives or drying time required.

Full Adhesion (For Concrete or Wood Decks)

• Process: Low-VOC adhesive applied to substrate → TPO Waterproof Membrane rolled into wet adhesive → seam welding.
• Best for: Sloped roofs, curved surfaces, or where fasteners cannot penetrate substrate.

Pre-Applied Reverse Adhesion (For Underground Concrete)

• Process: P-Type TPO Waterproof Membrane placed with adhesive side up → reinforcement bars placed → concrete poured directly.
• Result: Concrete bonds permanently to membrane upon curing – zero water channeling.

Why Choose Haiming Machinery for TPO Waterproof Membrane?

Manufacturing Excellence

• Fully automated extrusion-calender production line.
• In-line quality monitoring for thickness, width, and surface uniformity.
• Every roll of TPO Waterproof Membrane is individually tested before shipping.

Technical Support & Training

• We provide free weld test kits and installation guides.
• On-site training available for large projects.
• We help contractors select the correct thickness and reinforcement type for their specific load and wind conditions.

Global Project Experience

• Haiming Machinery TPO Waterproof Membrane has been installed across North America, Southeast Asia, the Middle East, and Europe.
• Projects include airport hangars, cold storage warehouses, pharmaceutical clean rooms, and LEED Platinum office towers.

Warranty Options

• Limited material warranty: 10, 15, 20, or 30 years depending on thickness and application.
• System warranty available for projects using our recommended accessories (adhesives, plates, seam tape).

Frequently Asked Questions (FAQ) about TPO Waterproof Membrane

❓ How long does TPO Waterproof Membrane last?

With proper installation, Haiming Machinery TPO Waterproof Membrane provides 30+ years of service life . Accelerated aging tests confirm UV resistance beyond 10,000 hours.

❓ Is TPO better than PVC or EPDM?

• Better than PVC: No plasticizers → No plasticizer migration or embrittlement over time.
• Better than EPDM: Heat-weldable seams (EPDM requires adhesive or tape) and superior chemical resistance.

❓ Can TPO be installed over existing roofing?

Yes. We design our TPO Waterproof Membrane for reroofing/overlay applications. A separation layer or cover board may be required depending on the existing surface.

❓ Is TPO resistant to ponding water?

Yes. Our TPO Waterproof Membrane is non-absorbent and UV-resistant, making it suitable for flat roofs with occasional ponding water, provided the roof structure has adequate drainage.

❓ Does TPO become brittle in cold weather?

No. Our TPO Waterproof Membrane passes the -40°C low temperature bend test without any cracks. We have successfully installed it in Canadian and Russian winter conditions.

❓ What colors are available?

Standard: White (high reflectivity). Custom: Light gray, tan, or custom upon minimum order quantity.

Ordering & Logistics Information

Parameter	Details
MOQ (Minimum Order Quantity)	1 pallet (approx. 500-800 m² depending on thickness)
Packaging	Shrink-wrapped on heavy-duty cardboard cores, edge protectors
Shipping Port	Qingdao / Shanghai, China
Lead Time	15-20 days for standard thickness; 25-30 days for custom colors or P-Type
Documentation Provided	Mill test certificate, installation guide, safety data sheet (SDS), warranty registration card
