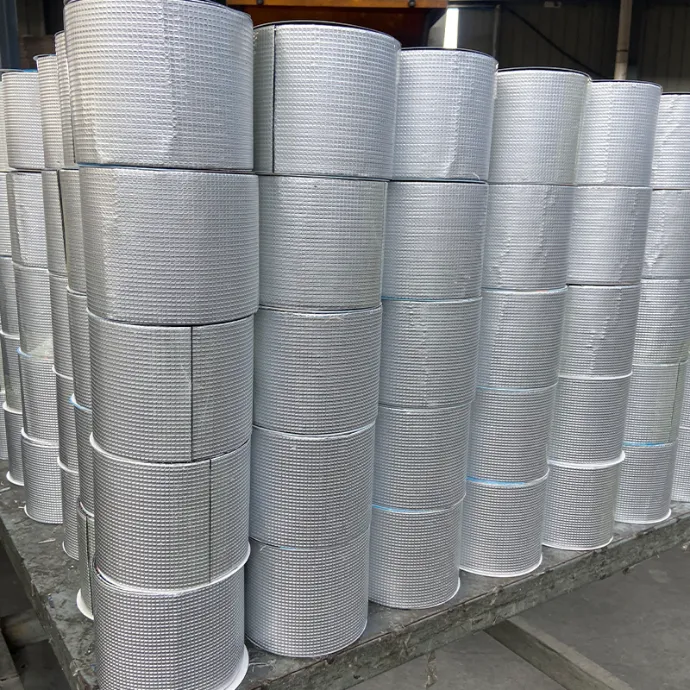

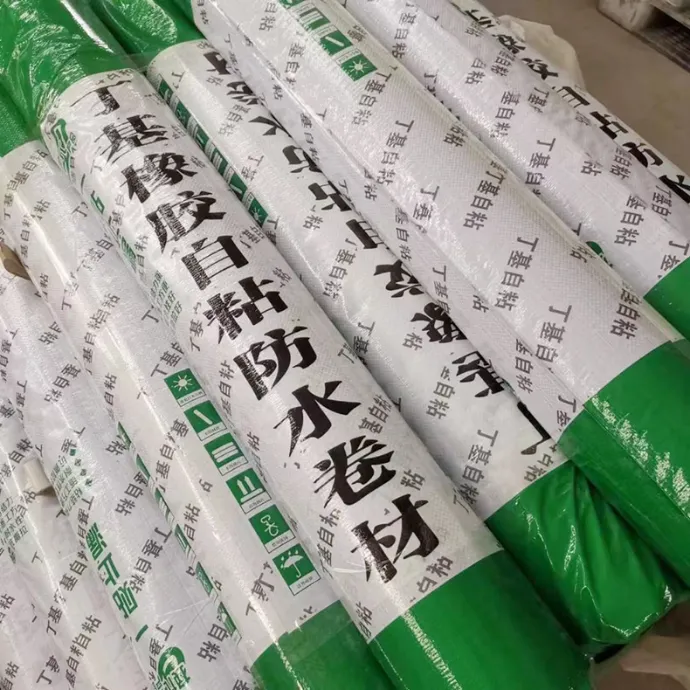

Butyl Rubber Self-Adhesive Roll

As a critical component in modern building protection, the butyl rubber self-adhesive roll represents a high-end, eco-friendly waterproofing material. Manufactured primarily from butyl rubber blended with tackifiers, reinforcing agents, and anti-aging additives through rigorous mixing, calendering, or extrusion processes, this material combines exceptional sealing properties with large-scale application efficiency. For manufacturers seeking to produce premium butyl rubber self-adhesive rolls, Haiming Machinery provides heavy-duty, high-efficiency production line equipment designed to meet international engineering standards and strict environmental regulations.

Product Structure & Classification

Butyl rubber waterproofing membranes are categorized into three primary structural types based on their specific application requirements. Haiming Machinery designs dedicated extrusion and calendering equipment capable of manufacturing all three configurations:

1. Homogeneous Butyl Roll

• Structure: Pure butyl rubber formulation without internal reinforcement layers.
• Characteristics: Maximum flexibility and elongation, allowing perfect contouring to irregular substrates with superior sealing integrity.
• Applications: Specialized waterproofing for complex geometries, pipe penetrations, and expansion joints.

2. Reinforced Butyl Roll

• Structure: A multi-layer composite featuring a fiberglass mesh or polyester felt core embedded between double layers of butyl rubber.
• Characteristics: Significantly elevated tensile strength and tear resistance while maintaining necessary structural flexibility.
• Applications: Large-scale waterproofing projects including roofs, basements, and tunnel infrastructures.

3. Self-Adhesive Butyl Roll

• Structure: Formulated with an integrated pressure-sensitive self-adhesive layer on the butyl base, protected by a release liner.
• Characteristics: Cold-applied installation requiring no torching or external adhesives; adheres immediately to dry substrates.
• Applications: Roof repairs, retrofitting old buildings, and flame-restricted construction zones.

Technical Specifications & Equipment Parameters

To ensure high precision during the calendering and extrusion stages of the butyl rubber self-adhesive roll, Haiming Machinery configures equipment according to the following standard industry parameters:

Core Performance Advantages

Exceptional Gas and Liquid Barrier

The molecular structure of butyl rubber is highly dense. Its gas permeability is approximately 1/100 that of natural rubber. This density effectively blocks the penetration of moisture, vapor, gases, and dust, preventing water migration beneath the membrane layer.

Broad Thermal Stability and Weathering Resistance

The finished butyl rubber self-adhesive roll maintains its physical properties between -40°C and +120°C. It exhibits high resistance to ultraviolet (UV) radiation and ozone aging, ensuring long-term performance exceeding 30 years.

Verified Environmental Compliance

Formulations contain zero volatile solvents, plasticizers, or chlorides. The production process yields no toxic gas emissions, and the material is 100% recyclable, assisting projects in meeting LEED certification requirements.

Substrate Adhesion Versatility

Provides strong, durable adhesion to metal, glass, concrete, plastics, and timber without requiring separate priming agents or secondary adhesives.

Manufacturing Capability by Haiming Machinery

Founded in 2007 and headquartered in the Taitou Industrial Park (Shouguang, Shandong), Haiming Machinery specializes in R&D and manufacturing of high-polymer waterproofing equipment. Our production lines for the butyl rubber self-adhesive roll emphasize energy efficiency, low operating costs, and stable automated control.

Environmental Mitigation Notice: Addressing the emission challenges inherent to waterproofing production, Haiming Machinery integrates advanced multi-stage dust removal and odor control systems directly into our equipment lines, achieving an emission purification efficiency verified above 90%.

Frequently Asked Questions (FAQ)

What are the substrate requirements before applying a butyl rubber self-adhesive roll?

The substrate must be structurally sound, dry, clean, and free of dust, oil, or loose debris. While the self-adhesive properties are robust, moisture or heavy dust will compromise the initial bond strength.

Can this equipment line produce dual-sided adhesive membranes?

Yes. The extrusion and laminating machinery configured by Haiming Machinery can be adjusted to produce single-sided self-adhesive, double-sided self-adhesive, or film/foil-faced composite membranes depending on the targeted market segment.

How does the integrated odor removal system handle extrusion emissions?

The integrated system utilizes a combination of mechanical filtration, plasma carbon adsorption, or photo-catalytic oxidation units tailored to the specific compound emissions, capturing over 90% of process odors and particulate matter to maintain workshop air quality compliance.
