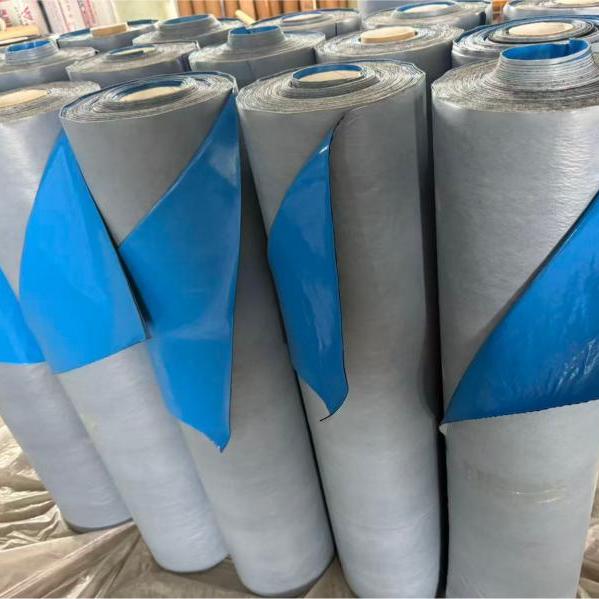

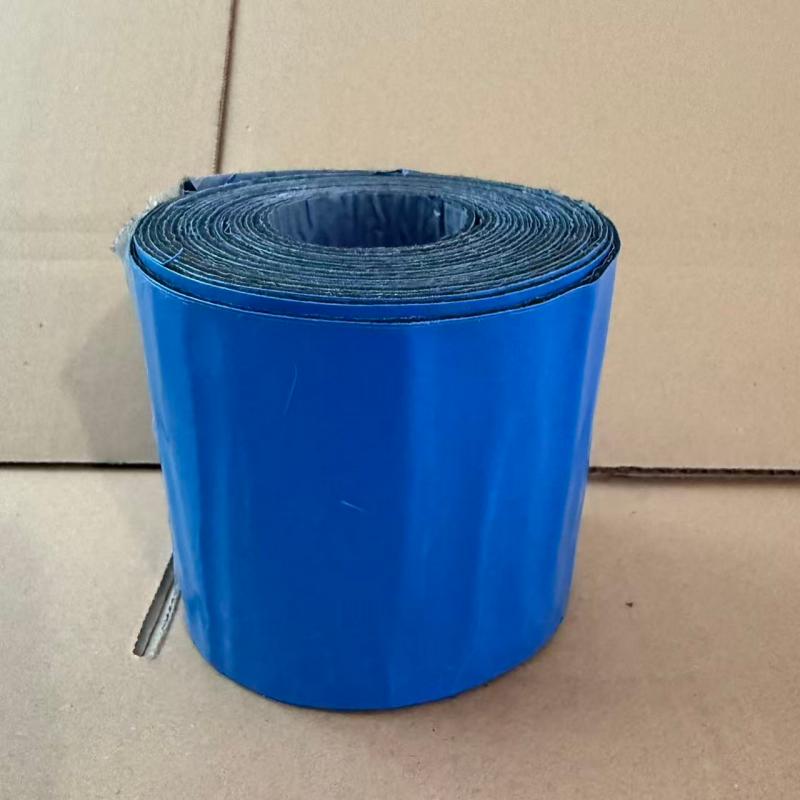

Color Steel Tile Self-adhesive Insulation Waterproof Film

What Problems Can It Solve

Solve Color Steel Roof Leakage Problem

• Effectively block rainwater penetration, avoid water leakage at the lap joint of color steel tiles and node positions
• Solve the problem of water seepage caused by aging, cracking and corrosion of the original waterproof layer of the old color steel roof

Solve Color Steel Roof Heat Loss Problem

• The middle insulation layer reduces indoor and outdoor heat transfer, reduces heating and cooling energy consumption
• Avoid the problem of excessive indoor temperature difference caused by poor thermal insulation of color steel tiles in summer and winter

Solve Complex Construction Problems

• No open fire heating or complex fasteners are needed, which reduces construction hidden dangers and simplifies the construction process
• Solve the problems of edge warping and hollowing of ordinary waterproof materials caused by inconsistent deformation with color steel tiles

Who Needs This Product

New Steel Structure Building Investors

Suitable for investors of new steel structure factories, warehouses and carports, it realizes integrated construction of waterproof and thermal insulation, saves construction links and costs, and is consistent with the energy-saving and environment-friendly needs of modern buildings.

Old Color Steel Roof Renovators

For units or individuals who need to renovate old color steel roofs (such as factories, breeding bases, and activity board room operators), it can quickly solve the problems of water leakage and poor thermal insulation without large-scale demolition.

Energy-saving Transformation Demanders

Breeding greenhouses, sun rooms and temporary buildings that need energy-saving transformation can reduce energy consumption through the thermal insulation performance of the product, and ensure the stability of the internal environment through the waterproof performance.

Product Core Advantages

Integrated Dual Functions

It has both waterproof sealing and heat insulation performance. One construction can solve two pain points of color steel roof, which saves construction time and labor cost compared with separate construction of waterproof and heat insulation.

Self-adhesive Easy Construction

The self-adhesive layer adopts high-viscosity pressure-sensitive adhesive, which can be firmly bonded to the surface of color steel tiles. A single person can operate it, and novices can quickly get started, which greatly shortens the construction period.

Strong Adaptability

It can closely fit the corrugated structure of color steel tiles, has good flexibility, can adapt to slight deformation of the roof caused by thermal expansion and contraction, and avoids edge warping and hollowing.

Excellent Weather Resistance

The surface is made of UV-resistant modified asphalt or polymer material, which can resist harsh climates such as high temperature (up to 100℃), severe cold (-20℃ without cracking), acid rain and ultraviolet radiation, and the service life can reach 10-15 years.

Product Structure & Material

Upper Layer: Protective Layer

The upper layer of the color steel tile self-adhesive insulation waterproof film is made of weather-resistant PVC, PET film or modified asphalt layer, which is mainly responsible for resisting ultraviolet radiation and aging, and protecting the internal structure of the product from damage.

Middle Layer: Insulation Layer

The middle layer is made of XPS extruded board, EPS polystyrene board or polyurethane foam layer with low thermal conductivity, which can effectively block the heat transfer between indoor and outdoor, and play a good heat insulation and energy saving role.

Lower Layer: Self-adhesive & Isolation Layer

The lower layer includes a self-adhesive layer and an isolation layer. The self-adhesive layer is a high-viscosity pressure-sensitive adhesive, which can be firmly bonded to the color steel tile; the isolation layer is a PE film coated with silicone oil, which can be torn off directly during construction to ensure the viscosity of the self-adhesive layer.

Product Parameters (English)

How to Use

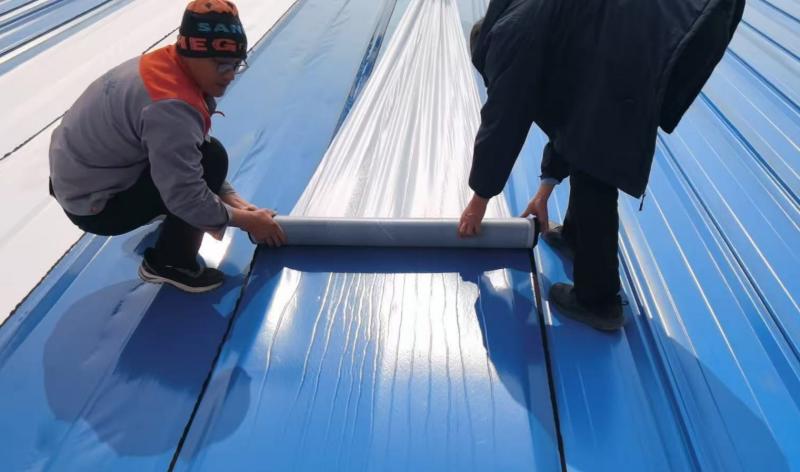

Simple Construction Steps

1. Base Treatment: Clean the surface of color steel tiles, remove dust, oil stains and loose rust, and ensure the surface is flat and dry (moisture content ≤ 9%).
2. Unfolding & Pasting: Tear off the isolation layer of the color steel tile self-adhesive insulation waterproof film, align it with the construction position, and paste it from top to bottom.
3. Compaction: Use a pressure roller to compact the film from the middle to both sides to discharge air and ensure firm bonding without hollowing.
4. Lap Treatment: The lap width between adjacent films is 80-100mm, and sealant is applied at the lap joint to enhance waterproof effect.

Construction Notes

• The optimal construction temperature is 5℃-35℃, and construction is prohibited on rainy, snowy or windy days (wind force ≥ level 5).
• The product should be stored in a cool and ventilated place to avoid direct sunlight and extrusion.

Customer Case & Evaluation

Practical Case

A large-scale steel structure factory in Shandong purchased Haiming Machinery color steel tile self-adhesive insulation waterproof film for roof renovation. After 1 year of use, the roof has no water leakage, and the indoor temperature in winter has increased by 5-8℃, reducing heating energy consumption by about 20%.

Customer Evaluation

• Factory Operator: "The construction is very simple, and it can be completed by a few workers in a short time. The waterproof and thermal insulation effect is obvious, which solves our long-term roof leakage problem."
• Construction Contractor: "The product has good adhesion, can fit the color steel tile tightly, and there is no warping after half a year of use. Haiming Machinery's after-sales technical support is also very timely."

FAQ

Quality & Certification

Q: Does the product have relevant quality certifications? A: Yes, the color steel tile self-adhesive insulation waterproof film of Haiming Machinery meets GB/T 23457-2009 standard and has passed ISO certification, and each batch of products will pass the final inspection before leaving the factory.

Compatibility & Adaptability

Q: Is it suitable for all types of color steel tiles? A: It is suitable for common color steel tiles (corrugated, standing seam, etc.), and can closely fit the surface of color steel tiles, adapting to slight deformation of the roof.

After-sales & Logistics

Q: What after-sales services are provided? A: Haiming Machinery provides online technical support for construction guidance. If there is quality problem within the warranty period, it will provide free replacement. Logistics can cover all parts of the country, and the delivery time is 3-7 working days.

Purchase & Customization

Q: Can the product specifications be customized? A: Yes, the thickness, width and length of the color steel tile self-adhesive insulation waterproof film can be customized according to the actual needs of customers, and the MOQ can be negotiated.
