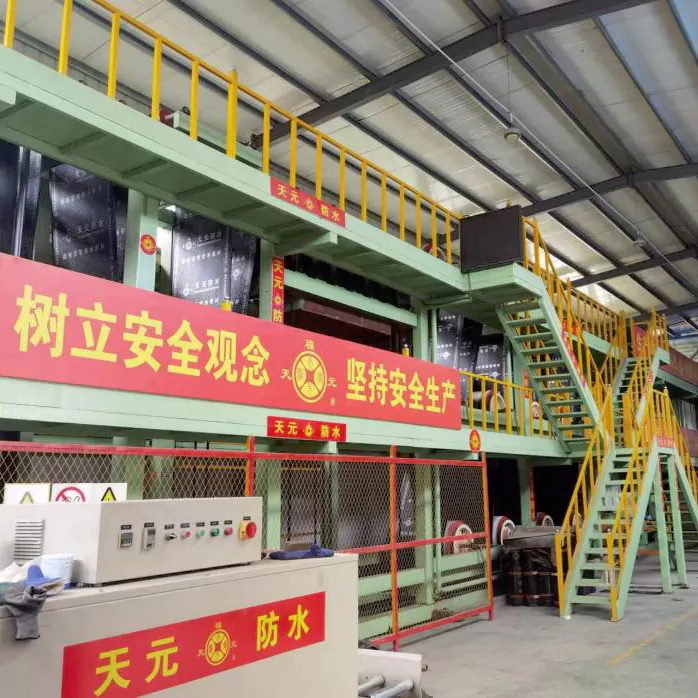

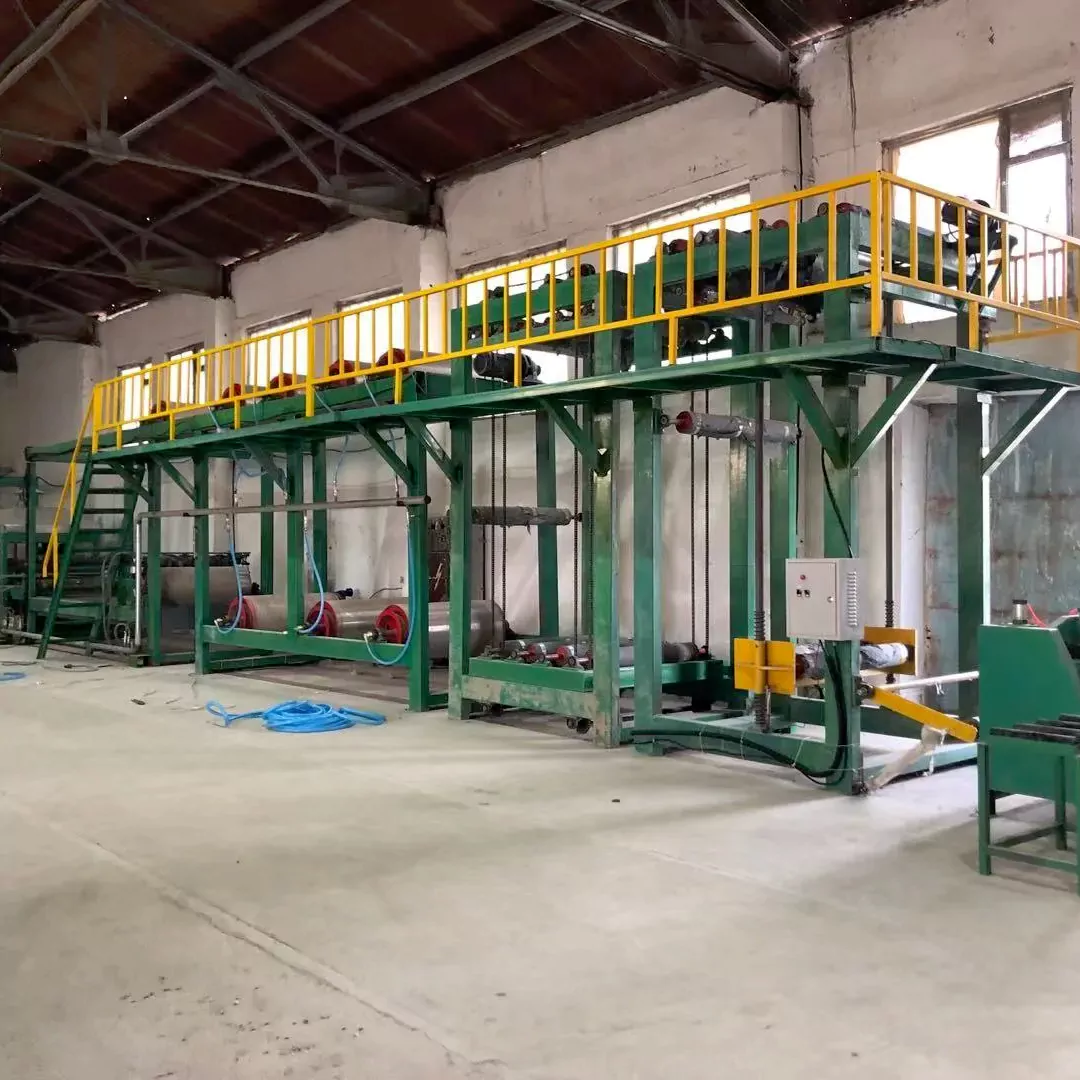

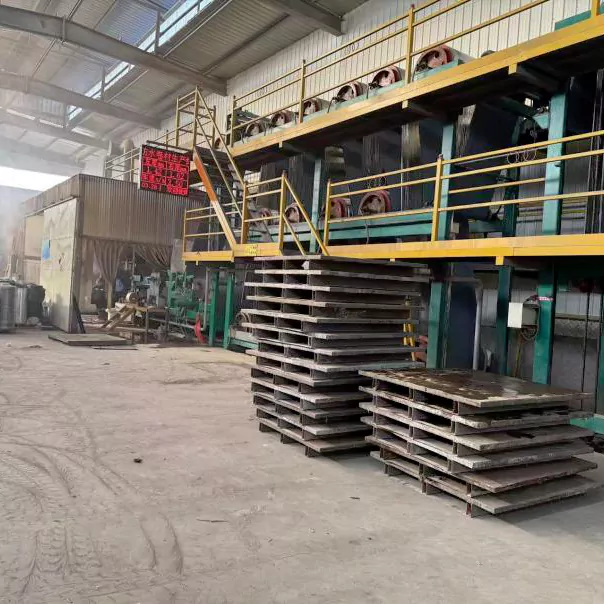

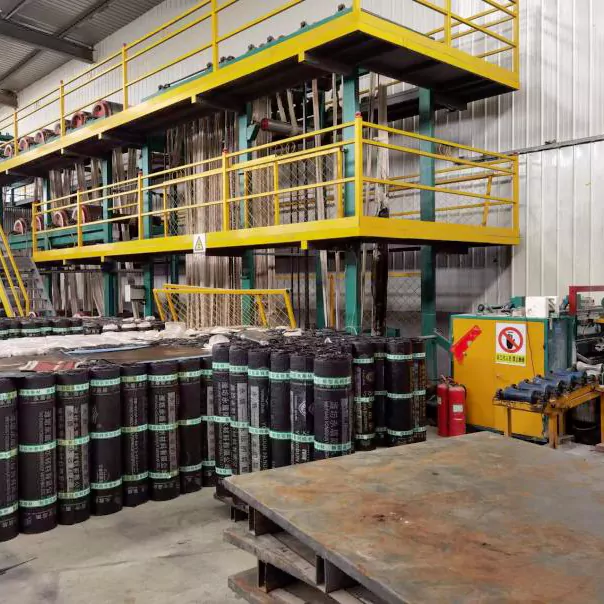

DPC Moisture Barrier Membrane Production Line

DPC (Damp Proof Course) moisture barrier membrane is mainly made of PE/HDPE/LLDPE polymer materials, and also includes PVC, EVA and modified asphalt types, whose core function is to block the capillary rise of groundwater vapor. Haiming Machinery DPC Moisture Barrier Membrane Production Line takes extrusion casting/blown film + embossing/composite as the core process, with mature technology and stable operation. The produced DPC moisture barrier membrane can meet the moisture-proof and vapor barrier needs of various building scenarios, and the production line is suitable for large, medium and small enterprises.

I. Main Product Structure of DPC Moisture Barrier Membrane

1. Pure PE/HDPE Type (Most Commonly Used)

Surface Layer

Smooth/embossed (diamond grid/dot, enhancing mortar adhesion)

Main Body

PE/HDPE/LLDPE base material (0.2–2.0mm)

Functions

Moisture proof and vapor barrier

Anti-aging and acid-alkali resistance

2. Composite Reinforced Type (High-end)

Surface Layer

Embossed PE

Reinforcement Layer

Non-woven fabric/glass fiber cloth (improving tensile strength and tear resistance)

Bottom Layer

PE/HDPE

Application

Heavy-duty foundations and underground projects

3. Other Types

PVC/EVA Type

Weather resistance and good flexibility

Modified Asphalt Type

Self-adhesive, suitable for asphalt base surfaces

II. Main Production Process

Extrusion Casting Method (High Flatness, Stable Width)

Step 1: Raw Material Batching

PE/HDPE + masterbatch + antioxidant + UV stabilizer

Step 2: Melting and Plasticizing

Single-screw extruder → melting and plasticizing

Step 3: Casting Film Formation

Hanger-type die → casting film formation

Step 4: Shaping

Three-roll calendering/cooling shaping (including embossing roll)

Step 5: Auxiliary Processing

Traction, deviation correction, edge trimming

Step 6: Thickness Detection (High Configuration)

Online thickness measurement (laser/β-ray)

Step 7: Winding

Dual-station automatic winding → finished product

Process Advantages

Uniform thickness and flat surface

Embossing available

Width up to 1.8–8m, suitable for large-volume building coils

III. Core Equipment Composition (Standard 1.2–1.5m Casting Line)

Feeding System

Automatic Batching/Feeding System

Accurate measurement and uniform mixing

Extrusion System

Single-screw Extruder

65/75/90mm, PE-specific screw

Film Formation System

Hanger-type Die

Width 1.0–1.8m, fine adjustment of die lip

Shaping System

Three-roll Calendering/Cooling Unit

Mirror roll + embossing roll + cooling roll, temperature control ±1℃

Processing System

Traction + Automatic Deviation Correction + Edge Trimming

Ensure the coil is straight and the width is accurate

Detection System (High Configuration)

Online Thickness Gauge

Real-time thickness monitoring and automatic feedback adjustment

Winding System

Dual-station Automatic Winder

Non-stop roll changing, high efficiency

Control System

PLC Control System

Full automatic control of temperature, tension and speed

IV. Key Technical Parameters

About Haiming Machinery

Company Profile

Founded in 2007, Haiming Machinery is located in Taitou Industrial Park, Shouguang, Shandong. The company's leading products include various new waterproof membrane equipment, including Haiming Machinery DPC Moisture Barrier Membrane Production Line, asphalt waterproof membrane production lines, non-woven fabric equipment, high and medium-grade polyethylene polypropylene (polyester) polymer waterproof membrane equipment, etc. The company's products have long service life, energy saving, low cost and easy operation, suitable for large, medium and small enterprises. In response to the air pollution problem of SBS waterproof membrane, the factory has developed a complete set of dust and odor removal equipment, with an effect of more than 90%.

Why Choose Haiming Machinery DPC Moisture Barrier Membrane Production Line?

Professional Manufacturer: Founded in 2007, with rich experience in R & D and production of waterproof membrane equipment, mature technology and complete product categories.

Stable Product Quality: Haiming Machinery DPC Moisture Barrier Membrane Production Line adopts high-quality components, with precise control system and stable operation, ensuring the quality of finished DPC membrane.

Diversified Adaptability: The production line can produce various types of DPC moisture barrier membranes (PE/HDPE/PVC/EVA/modified asphalt), meeting different building needs.

Cost-Effective: Moderate investment, energy saving and low operation cost, suitable for enterprises of different scales.

Complete After-sales Service: Provide professional installation guidance and equipment maintenance services to solve procurement and use problems for customers.

FAQ

Q1: What raw materials can Haiming Machinery DPC Moisture Barrier Membrane Production Line process?

A1: It can process PE/HDPE/LLDPE granules (new material or recycled material), and also can be customized to process PVC, EVA and modified asphalt raw materials according to needs.

Q2: What is the maximum width of the finished DPC moisture barrier membrane produced by the production line?

A2: The mainstream width is 1.0m/1.2m/1.5m, and the high-configuration production line can reach up to 8m, suitable for large-area building construction.

Q3: Is the production line easy to operate?

A3: Yes, the production line is equipped with PLC + touch screen control system, which realizes full automatic control of temperature, tension and speed, and no professional operation experience is required after simple training.

Q4: Can Haiming Machinery provide customized services for the production line?

A4: Yes, we can customize the width, production speed and other parameters of the production line according to the customer's actual production needs and factory space.

Q5: What after-sales services does Haiming Machinery provide?

A5: We provide equipment installation guidance, operation training, and long-term equipment maintenance services. If there is any problem during use, we will respond in a timely manner to ensure the normal operation of the production line.
