TPO and internally reinforced TPO waterproof membrane production line

Haiming Machinery TPO and Internally Reinforced TPO Waterproof Membrane Production Line is designed for continuous manufacturing of thermoplastic polyolefin membranes with strong weather resistance, weldability and dimensional stability. As a China manufacturer and supplier, Haiming Machinery provides integrated extrusion and compounding solutions for homogeneous, reinforced and backing TPO membranes used in roofing and underground waterproofing systems.

Send Inquiry

Product Description

Definition of TPO Waterproof Membrane Production Line

Haiming Machinery TPO and Internally Reinforced TPO Waterproof Membrane Production Line is a fully automatic system that processes TPO resin and auxiliary materials into finished membranes through extrusion, co-extrusion, reinforcement embedding, cooling and winding. It supports continuous production and adapts to different project requirements.

Main Application Fields

Industrial and commercial roofing systems
Photovoltaic roofing waterproofing
Basement and tunnel waterproofing
Infrastructure and water conservancy projects

Product Structure & Types

Available Membrane Types

Homogeneous TPO (Type H): Pure TPO extrusion, thickness 1.2–2.0mm
Internally Reinforced TPO (Type P/G): TPO + polyester/glass fiber mesh + TPO, thickness 1.5–2.0mm
Backing TPO (Type L): Bottom non-woven fabric for cold bonding

Reinforced Structure Advantage

Improves tear resistance and tensile strength
Enhances dimensional stability
Suitable for large-span and high-load roofing

Core Production Process

Multi-layer Co-extrusion One-step Method

Raw material batching and drying (moisture < 0.02%)
Twin-screw extrusion (190–230℃ plasticizing)
Multi-layer co-extrusion through wide die
Internal reinforcement mesh synchronous compounding
Three-roll calendering and cooling
Online inspection (thickness, pinhole detection)
Traction, trimming, winding and packaging

Process Highlights

One-step forming reduces delamination risk
Uniform thickness control (±0.05mm)
Continuous and stable production

Main Equipment Configuration

Core System Components

Automatic batching and feeding system
Twin-screw extruder (main + auxiliary)

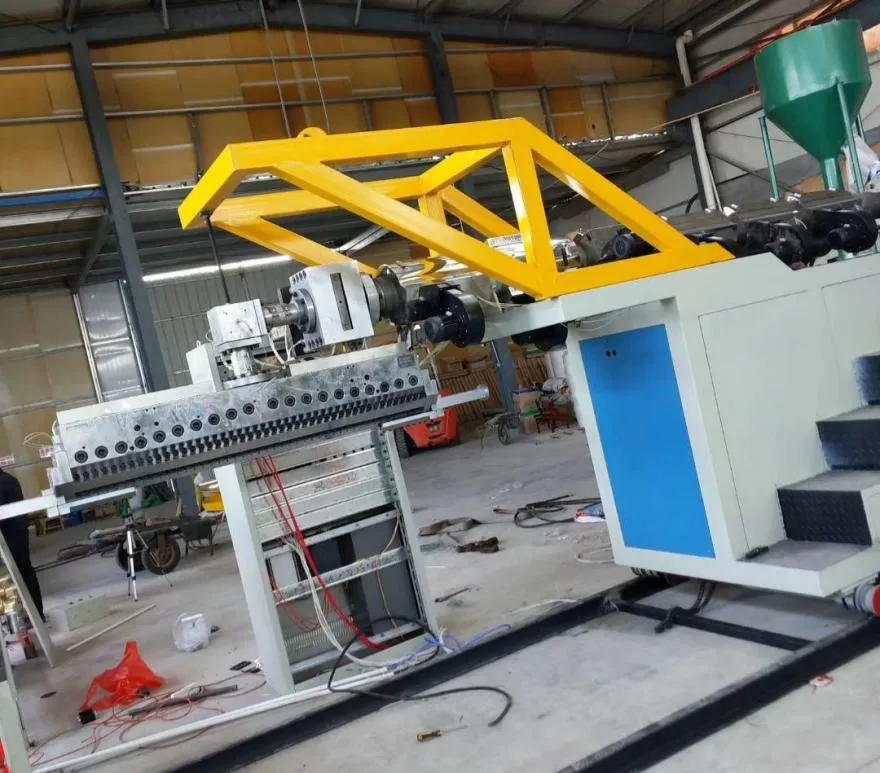

Multi-layer co-extrusion die (hanger type)
Reinforcement mesh unwinding unit

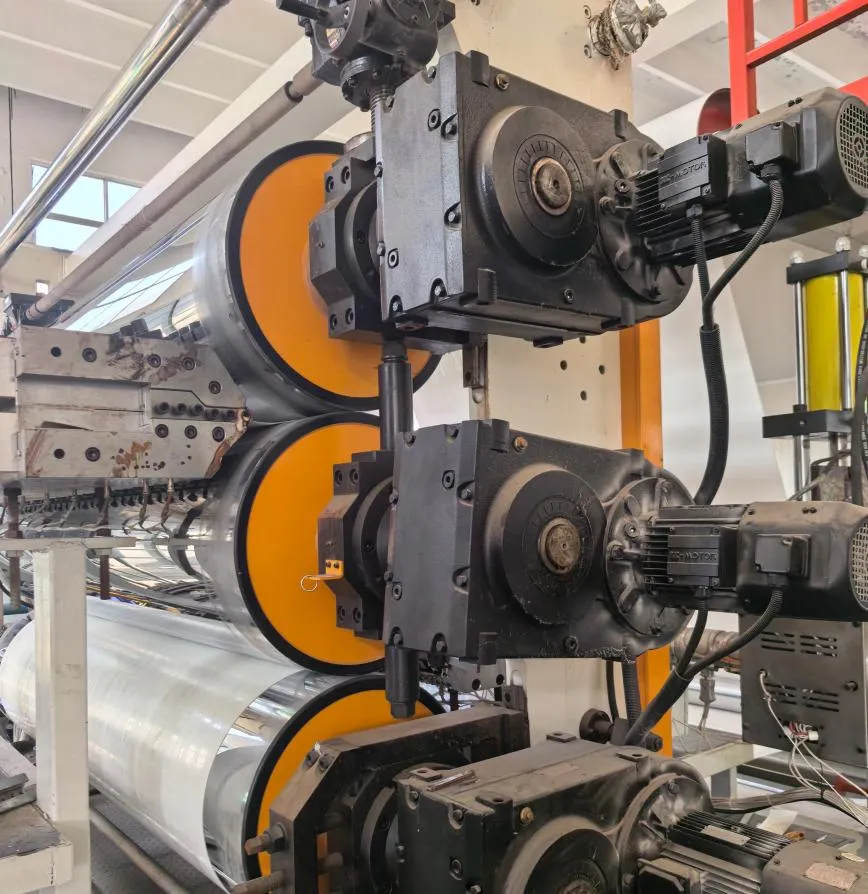

Three-roll calendering system
Cooling and traction system
Online detection instruments

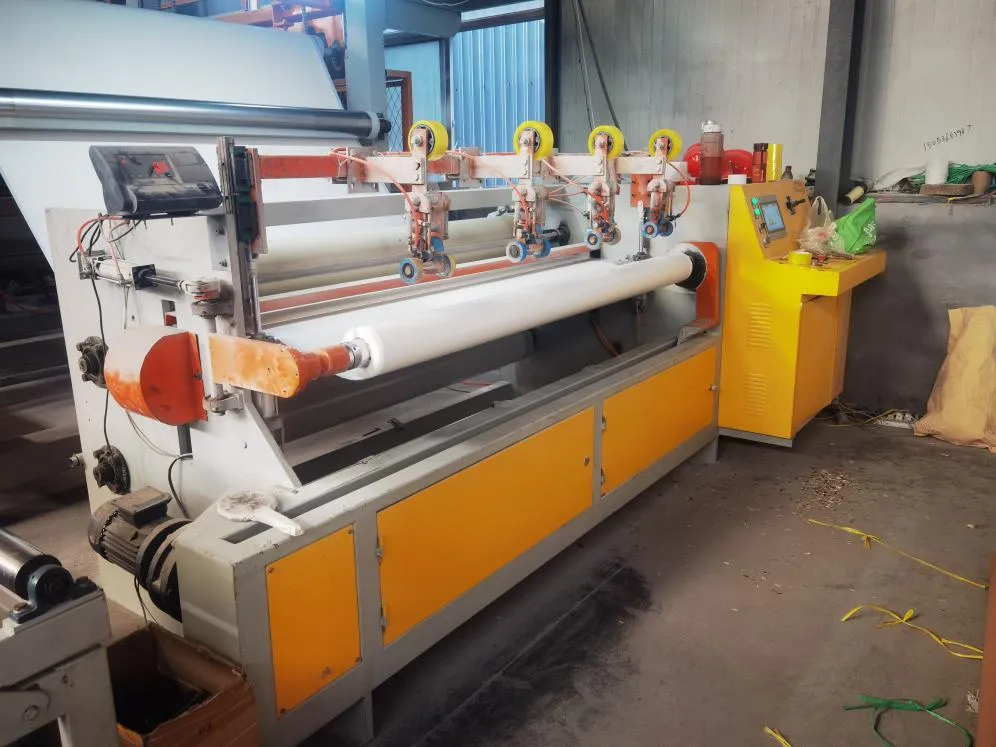

Automatic winding and packaging system

Technical Specifications

Technical Item	Specifications
Product Width	2.0m / 2.5m / 3.0m / 4.0m (Customizable)
Product Thickness	1.2–2.0mm (H); 1.5–2.0mm (Reinforced)
Production Speed	15–30 m/min
Annual Output	5–12 million ㎡ / line
Control Mode	PLC + Touch Screen
Heating Mode	Electric Heating
Reinforcement Material	Polyester Mesh / Glass Fiber Mesh
Power Consumption	Customizable

Core Advantages

Production & Quality Stability

Co-extrusion ensures strong interlayer bonding
Finished product qualification rate ≥ 98%
Stable operation for long-term production

Performance Improvement

Reinforced type increases tear resistance by over 50%
Improved wind uplift resistance
Better dimensional stability

Automation & Efficiency

PLC automatic control system
Reduced manual operation
Supports continuous high-speed production

Energy & Environmental Consideration

Optimized heating system for lower energy consumption
Optional dust and odor removal system (>90% efficiency)

Comparison with Traditional Production Lines

Item	Haiming TPO Line	Traditional Process
Production Method	One-step Co-extrusion	Multi-step Lamination
Efficiency	Higher (20–30%)	Lower
Bonding Strength	Strong	Relatively weaker
Delamination Risk	Low	Higher
